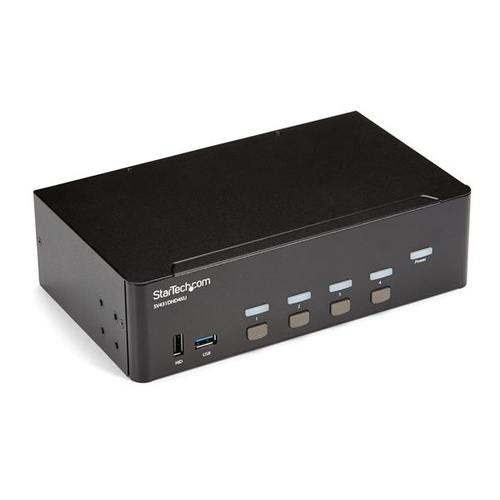

StarTech.com 4 Port HDMI KVM Switch - 4K 30Hz - Dual Display
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 10 |
| Console ports | 3.5mm headphone,HDMI,USB A |
| Console USB ports quantity | 6 |
| USB connector type | USB Type-A |
| Headphone outputs | 4 |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 |
| Data transfer rate (max) | 5 |
| Scan interval | 3,8,15,30 |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Power,Status |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 168000 |
| Certification | CE, FCC, TAA, REACH |
| Display | |
| Built-in display | No |
| Power | |
| Power source | AC |
| AC input voltage | 100 - 240 |
| Input current | 0.6 |
| Output voltage | 12 |
| Output current | 1.5 |
| Power consumption (typical) | 18 |
| External power adapter | Yes |
| Compatible power plug types | AU,EU,JP,UK,US |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -10 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 130 |
| Depth | 220 |
| Height | 63 |
| Weight | 1200 |
| Packaging data | |
| Package width | 124 |
| Package depth | 295 |
| Package height | 85 |
| Package weight | 1800 |
| Packaging content | |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Other features | |
| IP control | No |
Delivery Options
Economy Delivery (UK)
Business Express
This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.
4K at 30Hz UHD dual display
With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.
Convenient and cost-effective USB 3.0 peripheral sharing
This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.
Complete multimedia capability
Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.
The SV431DHD4KU is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- High-definition video quality with support for dual 4K at 30Hz displays
- Two built-in USB 3.0 ports and independent HID keyboard/mouse ports
- No software or drivers required
