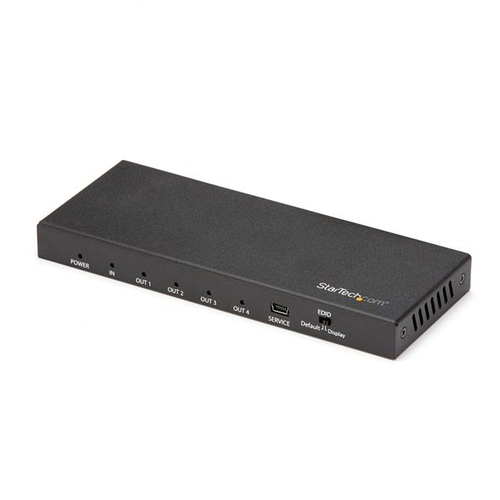

StarTech.com 4-Port HDMI Splitter - 60Hz
Product Technical Specification
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 2.0 |
| Video ports quantity | 4 |
| Features | |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 |
| Full HD | Yes |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 |
| Power LED | Yes |
| Plug and Play | Yes |
| Supported video modes | 720p,1080p |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 1 |
| Output voltage | 5 |
| Output current | 0.2 |
| Power consumption (typical) | 5 |
| Weight & dimensions | |
| Width | 64 |
| Depth | 165 |
| Height | 65 |
| Weight | 506 |
| Packaging data | |
| Package width | 148 |
| Package depth | 212 |
| Package height | 55 |
| Packaging content | |
| User guide | Yes |
| Included power plug types | AU,EU,NA,UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 90 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Maximum cable length | 5 |
| Supported audio channels | 7.1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
This 4-Port 4K HDMI splitter connects your HDMI video source to four HDMI displays at the same time, without distorting or degrading your video signal. For dependable performance, the splitter features a durable metal housing that provides passive cooling.
True 4K at 60Hz and HDR
With transmission bandwidth up to 18Gbps, this HDMI splitter is fully compatible with your HDMI 2.0 equipment, supporting UHD resolutions up to 4096x2160 (4K) at 60Hz. For smooth video and color transitions, the splitter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color.
The splitter also supports High Dynamic Range (HDR) imaging, offering a greater luminosity than standard digital imaging.
Widely Compatible
The 4-way HDMI splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with almost any HDMI source, or destination device such as computers, Blu-ray players, monitors, TVs and projectors. Perfect for digital signage applications, where equipment may vary throughout your site.
Easy Installation
For hassle-free setup, the 1x4 HDMI splitter offers easy plug-and-play installation. The splitter also saves you setup time by automatically passing EDID between your video source and the display attached to port 1, ensuring settings like native resolution and refresh rate are configured properly.
ST124HD202 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Astonishing picture quality with support for 4K 60Hz and HDR
- Wide device compatibility with support for HDCP 2.2, backward compatible with virtually any HDMI device
- Hassle-free setup with support for EDID emulation and plug-and-play installation
