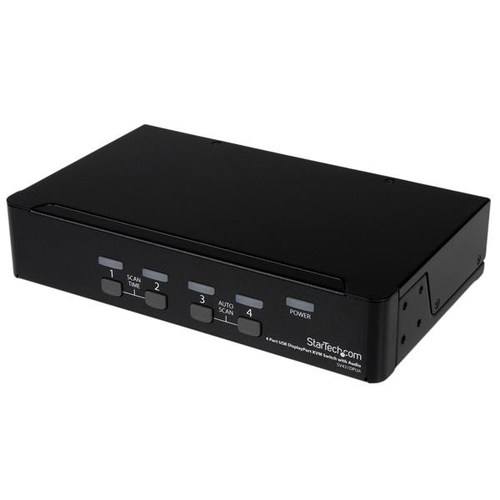

StarTech.com 4 Port USB DisplayPort KVM Switch with Audio

Manufacturer: Startech | Model: SV431DPUA | Product ID: 5466 | Warranty: 3 Year Warranty
£290.42 (inc. VAT)
5 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Number of computers controlled4
Keyboard port typeUSB
Mouse port typeUSB
Video port typeDisplayPort
Console portsDisplayPort,3.5mm headphone,3.5mm mic,USB A
Console USB ports quantity4
USB hubYes
Audio connectionsYes
Headphone outputs5
Number of microphone inputs5
DC-in jackYes
Performance
Maximum resolution3840 x 2400
Maximum digital resolution2560 x 1600
DDC2B supportYes
Hot-Plug supportYes
Plug and PlayYes
Daisy chainNo
Number of users1
Audio channels7.1
Design
Product colourBlack
Housing materialSteel
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)136000
CertificationCE, FCC, UL, TAA, REACH
Display
Built-in displayNo
On Screen Display (OSD)No
Power
AC input voltage100 - 240
Input current0.8
Output voltage12
Output current1.5
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width221
Depth130.6
Height44
Weight1000
Packaging data
Package width214
Package depth411
Package height87
Package weight1600
Packaging content
ManualYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Other features
Audio supportYes
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Tue 25th Aug 2026 to Fri 28th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Mon 24th Aug 2026 to Wed 26th Aug 2026
View all Delivery Options & International Rates
Share keyboard, mouse, and DisplayPort display between four HD multimedia systems

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

The StarTech.com Advantage

- USB peripheral sharing using the integrated hub eliminates the expense of duplicate devices (printers, scanners, etc.)
- Compatible with Mini-DisplayPort adapters, making it suitable for Apple Macbook connectivity
- Support for digital DisplayPort 7.1 HD audio or separate 3.5mm analog audio connections for added versatility
