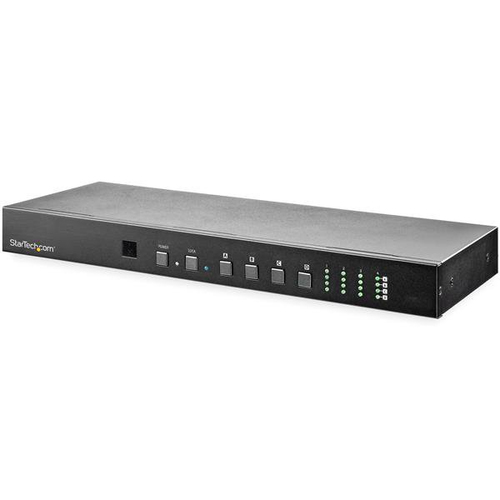

StarTech.com 4x4 HDMI Matrix Switch with Audio and Ethernet Control - 4K 60Hz
Product Technical Specification
| Features | |
| Product type | AV matrix switcher |
| Maximum resolution | 4096 x 2160 |
| Bandwidth | 18 |
| Audio channels | 7.1 |
| Supported resolutions | 4096 x 2160 3840 x 2160 1920 x 1200 |
| Design | |
| Housing colour | Black |
| Housing material | Metal |
| Rack mounting | Yes |
| LED indicators | Activity,Power |
| Remote control included | Yes |
| Certification | TAA, CE, FCC, REACH |
| Display | |
| Built-in display | No |
| Ports & interfaces | |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| HDMI version | 2.0 |
| USB connector type | Mini-USB B |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-232 ports | 1 |
| Remote (IR) input | 1 |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 1.5 |
| Output current | 2700 |
| Output voltage | 24 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 90 |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 160 |
| Depth | 437 |
| Height | 43 |
| Weight | 2000 |
| Package width | 292 |
| Package depth | 525 |
| Package height | 95 |
| Package weight | 4000 |
| Packaging content | |
| Manual | Yes |
| Mounting brackets included | Yes |
| IR receiver included | Yes |
| Included power plug types | ANZ,EU,JP,NA,UK |
Delivery Options
Economy Delivery (UK)
Business Express
This 4x4 HDMI matrix switch lets you share four HDMI video sources between four independent displays or projectors, and switch between which source is active on each display device.
True 4K at 60Hz
The HDMI switcher box provides a high level of audio and video performance, with superior contrast and crisp, clear imagery. With support for resolutions up to 4K 60Hz (4:4:4 pixel format, 8-bit color depth) and HDR, the matrix switch is ideal for conventions or trade shows, restaurants and classroom settings, as well as hospital/medical applications.
Plus, the 4K 60Hz HDMI switch is backward compatible with earlier versions of HDMI, so it's easy to use with your existing devices and displays.
Optimized Functionality
This 4x4 matrix switch is equipped with convenient push-button switching, WebGUI and RS232 control, and also features a front-panel LED display for easy status monitoring.
The HDMI switch box enables you to switch each input, meaning that different A/V sources can be shown on each output, or a single source can be output to all displays.
Ultimate Convenience
The matrix switcher includes a remote control and IR extender module that provides simple control from a distance, and is designed to save space with a standalone or rack-mounting option (ear-mounts included).
VS424HD4K60 is backed by a StarTech.com 2 -year warranty and free lifetime technical support.
The StarTech.com Advantage
- Share and switch four distinct HDMI A/V signals between four separate displays in a matrix configuration
- Enjoy astonishing picture quality with support for Ultra HD resolutions up to 4K 60Hz
- Install the HDMI switcher as a standalone device, or rack-mount it
