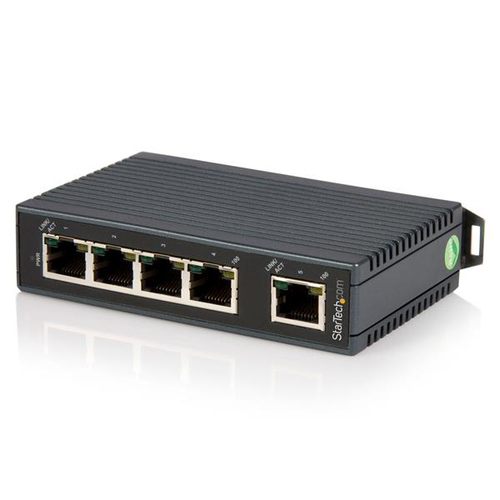

StarTech.com 5-port industrial Ethernet switch - DIN rail mountable

Manufacturer: Startech | Model: IES5102 | Product ID: 1788 | Warranty: 2 Years
£82.27 (inc. VAT)
16 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Network
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u
10G supportNo
Full duplexYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
Store-and-forwardYes
Jumbo frames supportNo
Design
Rack mountingYes
Product colourBlack
Housing materialPlastic
LED indicatorsActivity,Link,Power
International Protection (IP) codeIP30
Regulatory ApprovalsEN61000-6-2, EN61000-6-4, EN61000-4-3, EN61000-4-4, EN61000-4-6, EN61000-4-8, IEC60068-2-6 Fc, IEC60068-2-27 Ea
CertificationCE, FCC
Performance
Maximum cable length100
Buffer size56
Maximum data transfer rate200
Mean time between failures (MTBF)1179133
Power
Input voltage12 - 48
Power consumption (max)2.12
Operational conditions
Operating temperature (T-T)-10 - 60
Storage temperature (T-T)-25 - 85
Operating relative humidity (H-H)5 - 95
Weight & dimensions
Width25
Depth70
Height110
Weight148
Packaging data
ManualYes
Terminal block includedYes
Package width178
Package depth198
Package height79
Package weight312
Logistics data
Harmonized System (HS) code85176990

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Expand your network connectivity with this rugged unmanaged 10/100Mbps switch

This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.

Conquer the tough demands of industrial environments

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.

Get up and running in no time

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.

Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.

Reduce your energy costs with Energy-Efficient Ethernet

With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.

The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Network up to 5 Ethernet devices, even in industrial settings, with a robust IP30-rated switch
- Wide-range 12-48V DC terminal block input
- Easy installation with an integrated DIN rail bracket
