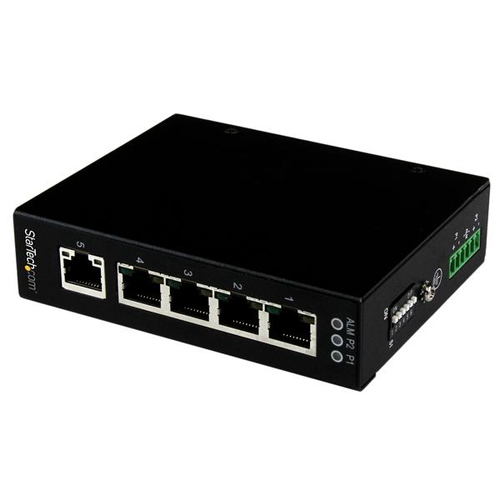

StarTech.com 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u |
| 10G support | No |
| Full duplex | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 2 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity,Link,Power |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Certification | CE, FCC, RoHS, REACH |
| Performance | |
| Maximum cable length | 100 |
| Buffer size | 128 |
| Power | |
| Input voltage | 12 - 58 |
| Power consumption (typical) | 3.63 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 89 |
| Depth | 111 |
| Height | 28 |
| Weight | 328 |
| Packaging data | |
| Manual | Yes |
| Wall mounting kit | Yes |
| Terminal block included | Yes |
| Mounting brackets included | Yes |
| Screws included | Yes |
| DIN rail included | Yes |
| Package width | 139 |
| Package depth | 176 |
| Package height | 83 |
| Package weight | 523 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
For easy installation and dependable performance in harsh environments, the switch can be DIN Rail or wall mounted and features a compact, IP30-rated enclosure with an extended operating temperature range (-40°C to 75°C).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Seamless performance even in harsh industrial conditions, with an extended temperature range and an IP30-rated enclosure
- Maintain device operation during power disruptions, with redundant power inputs
- Install the switch exactly where you need it, using the included DIN Rail & wall-mount brackets
