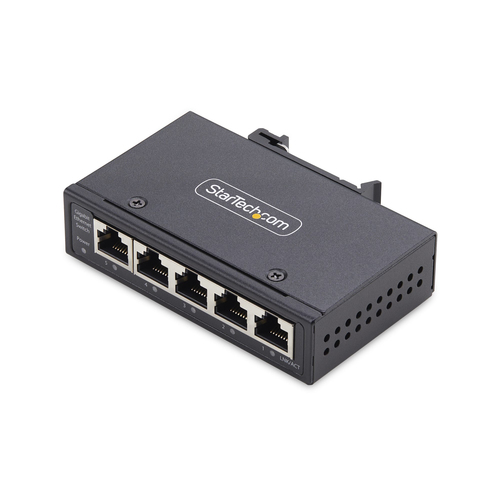

StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Power connector | Terminal block (3-pin) |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 100BASE-TX,1000BASE-T |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 |
| Data transmission | |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Design | |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Mean time between failures (MTBF) | 556710 |
| Power | |
| Power supply included | Yes |
| Input voltage | 9 - 60 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 60 |
| Depth | 100 |
| Height | 26 |
| Weight | 221.7 |
| Packaging content | |
| Quick start guide | Yes |
| Packaging data | |
| Terminal block included | Yes |
| Mounting brackets included | Yes |
| DIN rail included | Yes |
| Package width | 107 |
| Package depth | 159 |
| Package height | 55 |
| Package weight | 293.7 |
| Certificates | |
| Compliance certificates | RoHS,Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 355 |
| Master (outer) case length | 295 |
| Master (outer) case height | 335 |
| Products per master (outer) case | 30 |
Delivery Options
Economy Delivery (UK)
Business Express
This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.
Enhance Your Network
Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.
Rugged TAA Switch
This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.
Designed for Demanding Environments
This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.
The StarTech.com Advantage
