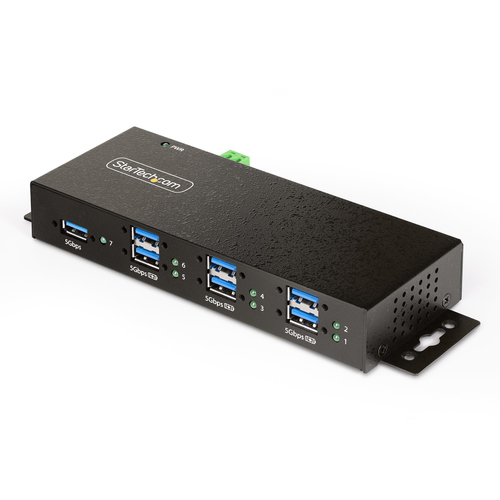

StarTech.com 5G7AINDRM-USB-A-HUB interface hub USB 3.2 Gen 1 (3.1 Gen 1) Type-B 5000 Mbit/s Black
Product Technical Specification
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 7 |
| Ports quantity | 7 |
| Terminal block port | Yes |
| Features | |
| Data transfer rate | 5000 |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power,Status |
| Plug and Play | Yes |
| Weight & dimensions | |
| Width | 114 |
| Depth | 67 |
| Height | 26 |
| Weight | 200 |
| Packaging data | |
| Package width | 213 |
| Package depth | 149 |
| Package height | 51 |
| Package weight | 500 |
| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
| DIN rail kit included | Yes |
| Quick start guide | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 |
| Storage temperature (T-T) | -20 - 75 |
| Operating relative humidity (H-H) | 5 - 95 |
| Performance | |
| Mean time between failures (MTBF) | 131406 |
| Sustainability | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE,RoHS,Trade Agreements Act (TAA) |
| Logistics data | |
| Master (outer) case width | 520 |
| Master (outer) case length | 430 |
| Master (outer) case height | 270 |
| Products per master (outer) case | 25 |
| Technical details | |
| Compliance certificates | CE,RoHS,Trade Agreements Act (TAA) |
| Other features | |
| Chipset | VIA - VL817-Q7 C0 |
Delivery Options
Economy Delivery (UK)
Business Express
Managed USB Hub
The USB Hub Administrator Software is to be installed on the host computer, enabling users to remotely control device access and manage operational features. With this software, users can:
Enable or disable individual or all ports on the USB Hub.
Reboot the USB Hub.
Set a password to restrict unauthorized access.
Save port states for quick setup in specific applications.
Utilize Command Line Interface (CLI) commands for command-line operation or custom application development.
The software is compatible with Windows, macOS, and Linux, making it versatile across different platforms. It supports an unlimited number of Managed USB Hubs, allowing users to connect multiple Hubs to a single host computer or cascade them in sequence.
Rugged and Reliable
The Industrial USB Hub features a rugged heavy-duty metal enclosure designed to shield the hub from potential damage caused by accidental drops or sudden impacts. Moreover, it protects against Electrostatic Discharge (ESD) with 15kV air and 8kV contact Level-4 ESD protection. This robust construction ensures resiliency in demanding industrial environments, providing peace of mind for users in situations where durability and reliability are paramount.
Power Flexibility
The USB Hub offers power flexibility to cater to diverse user needs. It supports a wide voltage range from +7 to 24 volts DC, ensuring compatibility with various power sources. With two DC inputs, featuring both a terminal block and a concentric barrel connector, users can choose to power the USB Hub using either input or both simultaneously for redundancy. With an external power source connected, the USB Hub supports USB battery charging specification 1.2, delivering up to 1.5A (7.5W) on 6 of the downstream ports, so you can power and quickly charge external devices.
For optimal performance an external power source is required. StarTech.com offers an external power adapter (Part Number: ITB20D3250, sold separately) that will enable the USB Hub to operate at maximum performance.
Mounting Options
The USB Hub is thoughtfully designed for user convenience and adaptability. Equipped with built-in mounting brackets, installation is simplified. The hub may be mounted to a variety of surfaces such as walls or desks. The DIN rail bracket ensures secure mounting in industrial environments.
High-Performance
The rugged USB Hub supports SuperSpeed USB 3.2 Gen 1 (5Gbps) and maintains backward compatibility with legacy peripheral devices. Additionally, the USB Hub offers enhanced security through the USB Event Monitor utility, a feature within the StarTech.com Connectivity Tools application. This utility logs and timestamps USB port usage, empowering IT administrators to identify potentially malicious devices. For more details and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
