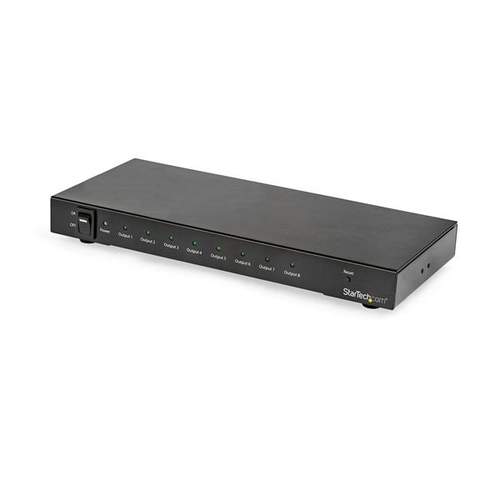

StarTech.com 8-Port 4K 60Hz HDMI Splitter
Product Technical Specification
| Ports & interfaces | |
| Video port type | HDMI |
| Video out | 8x HDMI |
| HDMI version | 2.0 |
| Video ports quantity | 8 |
| Features | |
| Product colour | Black |
| Maximum resolution | 3840 x 2160 |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 |
| HDCP | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Power LED | Yes |
| Supported video modes | 720p,1080p |
| LED indicators | Yes |
| Certification | CE, FCC, REACH |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 0.6 |
| Output voltage | 5 |
| Output current | 3 |
| Power consumption (typical) | 15 |
| Weight & dimensions | |
| Width | 110 |
| Depth | 258 |
| Height | 26 |
| Weight | 762 |
| Packaging data | |
| Package width | 260 |
| Package depth | 325 |
| Package height | 70 |
| Package weight | 1200 |
| Packaging content | |
| Included power plug types | AU,EU,NA,UK |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 10 - 85 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Technical details | |
| Audio support | Yes |
| Supported audio channels | 7.1 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
This 4K HDMI splitter lets you connect your HDMI video source to eight HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.
Supports true 4K at 60Hz
This 8-port 4K 60Hz HDMI splitter offers full support for your HDMI 2.0 equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color. Support for HDMI 2.0 devices means this splitter can transmit bandwidth up to 18Gbps, making it the ideal solution for high-resolution tasks requiring the highest color detail.
Note: In order to support 4K 60Hz coming through the splitter, each device in the chain must support HDCP 2.2.
Widely compatible
The splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application.
Easy installation and setup
The 4K HDMI splitter offers easy plug-and-play installation with no additional software or drivers required. The splitter passes EDID between your video source and the display attached to port 1, ensuring native settings such as resolution and refresh rate are configured automatically.
The ST128HD20 is backed by a 2-year StarTech.com warranty.
The StarTech.com Advantage
- Offers HDMI 2.0 technology which can support 4K 60Hz HDR
- 7.1 surround sound audio
- Supports 4:4:4 chroma subsampling even at 4K 60Hz with bandwidth up to 18Gbps
