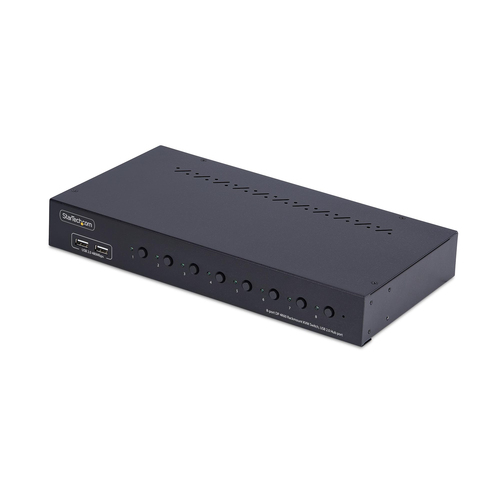

StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 8 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 8 |
| DisplayPort version | 1.2 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone,DisplayPort,USB A |
| Console USB ports quantity | 4 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 8 |
| DC-in jack | Yes |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 |
| Data transfer rate (max) | 0.48 |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 |
| Daisy chain | No |
| Audio channels | 2.0 |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Zinc |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 73003 |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240 |
| Input current | 1 |
| Output voltage | 12 |
| Output current | 3 |
| Power consumption (typical) | 36 |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC),Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Width | 164 |
| Depth | 300 |
| Height | 44 |
| Weight | 1500 |
| Packaging data | |
| Package width | 435 |
| Package depth | 288 |
| Package height | 70 |
| Package weight | 2300 |
| Packaging content | |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Other features | |
| Audio support | Yes |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 466 |
| Master (outer) case length | 390 |
| Master (outer) case height | 316 |
| Products per master (outer) case | 5 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.
No Drivers or Software
The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.
Multiple Switching Options
Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.
Rack Mount Kit Included
The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.
To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools
The StarTech.com Advantage
