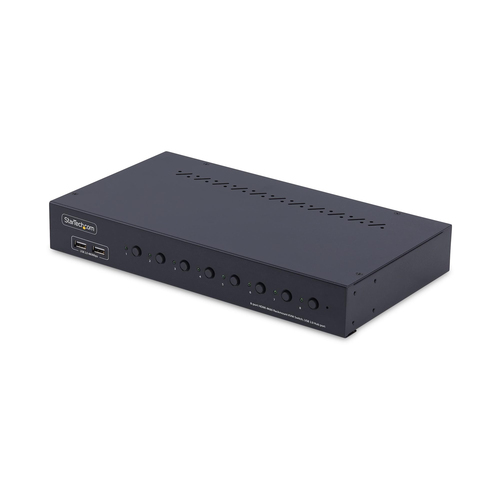

StarTech.com 8-Port HDMI KVM Switch with 1U Rack Mount Kit, 4K 60Hz HDMI 2.0, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant

Manufacturer: STARTECH | Model: R8AH202-KVM-SWITCH | Product ID: 2794 | Warranty: 2 Years
£592.20 (inc. VAT)
9 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
HDMI version2.0
USB 2.0 Type-B ports quantity8
Console ports3.5mm headphone,HDMI,USB A
Console USB ports quantity4
Headphone outputs1
Number of microphone inputs8
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Data transfer rate (max)0.48
Scan interval10,20,30,40,50,60,70,80,90,100
Daisy chainNo
Audio channels2.0
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialZinc
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)73905
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Power sourceDC
Input voltage100 - 240
Input current1
Output voltage12
Output current3
Power consumption (typical)36
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Compliance certificatesFederal Communications Commission (FCC),Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 90
Weight & dimensions
Width164
Depth300
Height44
Weight1500
Packaging data
Package width435
Package depth288
Package height70
Package weight2300
Packaging content
Quick installation guideYes
Rack mount kitYes
Other features
IP controlNo
Logistics data
Master (outer) case width585
Master (outer) case length545
Master (outer) case height270
Products per master (outer) case5

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Control up to eight USB and HDMI-enabled computers from a single keyboard, mouse, and 4K 60Hz HDMI monitor

The 4K 60Hz rackmount KVM switch allows switching between eight HDMI-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz HDMI 2.0 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.

No Drivers or Software

The TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.

Multiple Switching Options

Ensures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.

Rack Mount Kit Included

The KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.

To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of HDMI, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: Setup and save custom windows layouts.
• USB Event Monitoring Utility: Track and log connected USB devices.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

The StarTech.com Advantage
Ports & interfaces
Number of computers controlled8
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity8
HDMI version2.0
USB 2.0 Type-B ports quantity8
Console ports3.5mm headphone,HDMI,USB A
Console USB ports quantity4
Headphone outputs1
Number of microphone inputs8
DC-in jackYes
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Data transfer rate (max)0.48
Scan interval10,20,30,40,50,60,70,80,90,100
Daisy chainNo
Audio channels2.0
Design
Rack mountingYes
Rack capacity1U
Product colourBlack
Housing materialZinc
LED indicatorsYes
Push buttonYes
Hot keysYes
Mean time between failures (MTBF)73905
Display
Built-in displayNo
On Screen Display (OSD)No
Power
Power sourceDC
Input voltage100 - 240
Input current1
Output voltage12
Output current3
Power consumption (typical)36
Power plug typeType M
Compatible power plug typesAU,EU,UK,US
Sustainability
Compliance certificatesFederal Communications Commission (FCC),Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 90
Weight & dimensions
Width164
Depth300
Height44
Weight1500
Packaging data
Package width435
Package depth288
Package height70
Package weight2300
Packaging content
Quick installation guideYes
Rack mount kitYes
Other features
IP controlNo
Logistics data
Master (outer) case width585
Master (outer) case length545
Master (outer) case height270
Products per master (outer) case5
