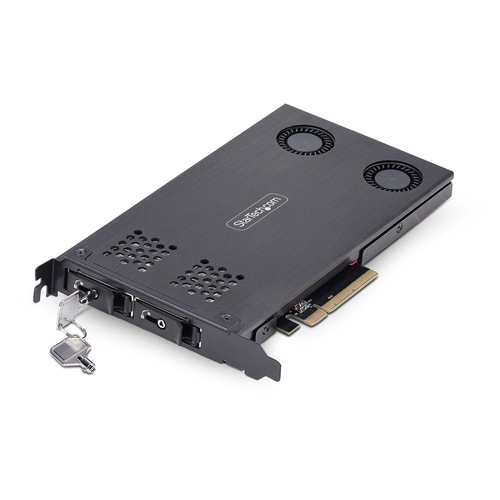

StarTech.com Dual-Bay M.2 NVMe SSD to PCIe x8 Removable Mobile Rack; Bifurcation Required; Tool-less Installation, PCIe Backplane w/Two Hot-Swap Drive Bays
Product Technical Specification
| Features | |
| Type | Backplane |
| Product colour | Black |
| Number of SSDs supported | 2 |
| SSD interface | M.2 |
| SSD form factor | M.2 |
| Hot-swap | Yes |
| Number of fans | 2 |
| Data transfer rate | 128 |
| LED indicators | Yes |
| Key lock | Yes |
| RAID support | No |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Mean time between failures (MTBF) | 40000 |
| Ports & interfaces | |
| Host interface | PCI Express |
| PCIe version | 4.0 |
| Weight & dimensions | |
| Width | 186 |
| Depth | 121 |
| Height | 19 |
| Weight | 500 |
| Packaging data | |
| Package width | 230 |
| Package depth | 151 |
| Package height | 46 |
| Package weight | 500 |
| Packaging content | |
| Quick start guide | Yes |
| Number of lock keys included | 2 |
| Number of screws | 2 |
| Operational conditions | |
| Storage temperature (T-T) | 0 - 50 |
| Operating temperature (T-T) | -10 - 60 |
| Operating relative humidity (H-H) | 10 - 60 |
| Technical details | |
| Compliance certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 28 |
| Master (outer) case width | 325 |
| Master (outer) case length | 485 |
| Master (outer) case height | 258 |
Delivery Options
Economy Delivery (UK)
Business Express
Utilize an available PCIe x8 expansion slot to install, remove, or swap PCIe M.2 SSDs. Supports 2230, 2242, 2260, and 2280 M-Key M.2 NVMe SSDs with high-performance read/write speeds up to 64Gbps per drive.
Toolless Installation
Toolless installation allows an M.2 drive to be placed into the drive tray or inserted into the drive bay without needing tools. It features a power/activity LED indicator, a latching drive tray, and a lockable installation with two included keys.
Effective Expansion
Provide quick-swap external access to internal M.2 NVMe drives without needing external enclosures or adapters, which can affect throughput. Without chipsets or adapters, the drives maintain full performance of up to 64Gbps per drive. The ability to quickly remove drives is ideal for servicing, replacing, or upgrading M.2 drives. Additional drive trays, TR-M2-REMOVABLE-PCIE, are sold separately.
Reliable Performance
Vented stainless steel frame, bracket, and tray with thermal pads, along with an aluminum cover and active cooling fans help dissipate heat to ensure the drives stay cool during operation. Anti-vibration springs on the drive tray reduce shock or vibrations, and an optional screw provides additional stability.
Access Two M.2 PCIe SSDs Simultaneously
No on-board chip means to no drivers or software requirements and is compatible with any operating system, including Windows and Linux. M.2 backplane works with PCI Express 4.0/3.0 motherboards that support PCIe bifurcation and have an available x8 or x16 slot.
Note: This product is not compatible with M.2 SATA drives.
Note: PCIe bifurcation is required to read and write to multiple drives.
