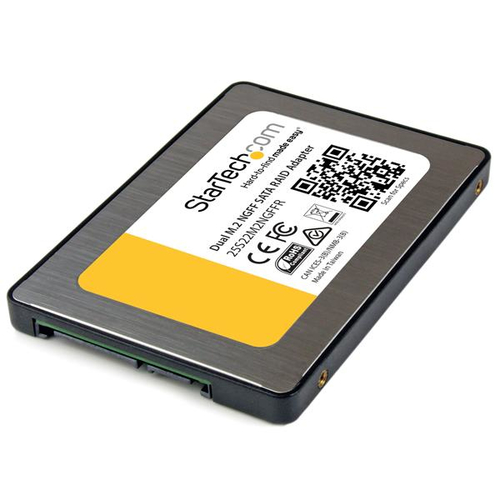

StarTech.com Dual M.2 NGFF SATA Adapter with RAID

Manufacturer: Startech | Model: 25S22M2NGFFR | Product ID: 1263 | Warranty: 2 Years
£37.38 (inc. VAT)
1 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Host interfaceSATA
Output interfaceM.2
SATA revision3.0
Port multiplierYes
Design
InternalNo
Product colourBlack,Metallic,White,Yellow
Mean time between failures (MTBF)500000
Features
ChipsetASMedia - ASM1092R
Data transfer rate (max)6
RAID levels0,1,BIG,JBOD
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-10 - 85
Operating relative humidity (H-H)5 - 95
Technical details
Sustainability certificatesRoHS
Weight & dimensions
Width68
Depth98
Height8
Weight55
Packaging data
Quick installation guideYes
Package width131
Package depth165
Package height31
Package weight118
Logistics data
Harmonized System (HS) code84733020
Other features
MaterialPlastic,Steel

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.

Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.

Maximize file transfer speeds
The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.

The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.

Get dependable drive protection
The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.

The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces
Host interfaceSATA
Output interfaceM.2
SATA revision3.0
Port multiplierYes
Design
InternalNo
Product colourBlack,Metallic,White,Yellow
Mean time between failures (MTBF)500000
Features
ChipsetASMedia - ASM1092R
Data transfer rate (max)6
RAID levels0,1,BIG,JBOD
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-10 - 85
Operating relative humidity (H-H)5 - 95
Technical details
Sustainability certificatesRoHS
Weight & dimensions
Width68
Depth98
Height8
Weight55
Packaging data
Quick installation guideYes
Package width131
Package depth165
Package height31
Package weight118
Logistics data
Harmonized System (HS) code84733020
Other features
MaterialPlastic,Steel
