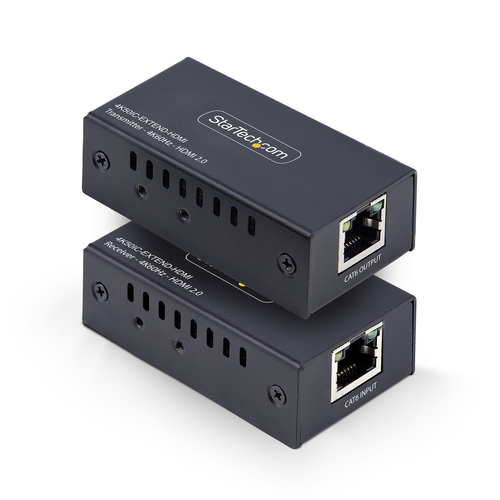

StarTech.com HDMI Extender Over CAT5e/CAT6, 4K 60Hz, Up to 200ft (60m), Transmitter and Receiver Kit, Power Over Cable, Compact Form Factor
Product Technical Specification
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance | 60 |
| Maximum refresh rate | 60 |
| Audio output channels | 7.1 |
| Supported graphics resolutions | 800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1440 x 900,1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),1920 x 1440,2048 x 1152,2048 x 1536 (QXGA),2560 x 1440,2560 x 1600 (WQXGA),2560 x 1920,2560 x 2048 |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB connector type | USB Type-C |
| Power | |
| Power source type | USB |
| AC input voltage | 100 - 240 |
| Input current | 0.3 |
| Operating voltage (transmitter) | 5 |
| Output current | 2 |
| Operating voltage (receiver) | 5 |
| Power consumption (typical) | 10 |
| USB Power Delivery (USB PD) | Yes |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 |
| Storage temperature (T-T) | -30 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 40 x 67 x 23 |
| Receiver weight | 92 |
| Transmitter dimensions (WxDxH) | 40 x 67 x 23 |
| Transmitter weight | 92 |
| Packaging data | |
| Package width | 150 |
| Package depth | 117 |
| Package height | 77 |
| Package weight | 364 |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | ANZ,EU,NA,UK |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC),RoHS |
| Logistics data | |
| Master (outer) case width | 430 |
| Master (outer) case length | 330 |
| Master (outer) case height | 380 |
| Products per master (outer) case | 30 |
Delivery Options
Economy Delivery (UK)
Business Express
The HDMI Extender is designed to transmit visually lossless and low latency 4K 60Hz video and 7.1 channel audio up to 200 feet (60 meters) over a single network cable.
4K 60Hz Resolution
This HDMI over CAT5e extender is HDMI 2.0 compliant and supports up to 4K 60Hz resolutions, HDR, HDCP 2.2, DTS, and Dolby Digital audio. This makes it suitable for high-quality video and audio transmission over long distances.
Power-Over-Cable
The extender features Power-over-Cable (PoC) technology, allowing the included power adapter to connect only to the transmitter while providing power to both the transmitter and receiver through the CAT5e/6 cable. This feature reduces the need for additional power sources at the receiver end.
Versatile Installation Options
A point-to-point connection uses a single CAT6/5e cable and requires no drivers, software, or IP configuration, significantly reducing setup time. The HDMI extender can be mounted on a wall, ceiling, or the underside of a table using the included brackets, offering versatile professional installation options. The HDMI extender offers a longer range than HDMI cables, and Ethernet cables are easier to run in walls, behind furniture, or through cable trays. Its compact form factor makes it ideal for boardrooms, digital signage, trade shows, and classrooms.
The StarTech.com Advantage
| Features | |
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance | 60 |
| Maximum refresh rate | 60 |
| Audio output channels | 7.1 |
| Supported graphics resolutions | 800 x 600 (SVGA),1024 x 768 (XGA),1152 x 864 (XGA+),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800 (WXGA),1280 x 960,1360 x 768 (WXGA),1400 x 1050 (SXGA+),1440 x 900 (WXGA+),1440 x 900,1600 x 1200 (UXGA),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),1920 x 1440,2048 x 1152,2048 x 1536 (QXGA),2560 x 1440,2560 x 1600 (WQXGA),2560 x 1920,2560 x 2048 |
| HDCP | Yes |
| Material | Metal |
| Rack mounting | No |
| HDCP version | 2.2 |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.0 |
| USB ports quantity | 1 |
| USB connector type | USB Type-C |
| Power | |
| Power source type | USB |
| AC input voltage | 100 - 240 |
| Input current | 0.3 |
| Operating voltage (transmitter) | 5 |
| Output current | 2 |
| Operating voltage (receiver) | 5 |
| Power consumption (typical) | 10 |
| USB Power Delivery (USB PD) | Yes |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -20 - 60 |
| Storage temperature (T-T) | -30 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Receiver dimensions (WxDxH) | 40 x 67 x 23 |
| Receiver weight | 92 |
| Transmitter dimensions (WxDxH) | 40 x 67 x 23 |
| Transmitter weight | 92 |
| Packaging data | |
| Package width | 150 |
| Package depth | 117 |
| Package height | 77 |
| Package weight | 364 |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | ANZ,EU,NA,UK |
| Quick start guide | Yes |
| Mounting brackets included | Yes |
| Technical details | |
| Compliance certificates | Federal Communications Commission (FCC),RoHS |
| Logistics data | |
| Master (outer) case width | 430 |
| Master (outer) case length | 330 |
| Master (outer) case height | 380 |
| Products per master (outer) case | 30 |
