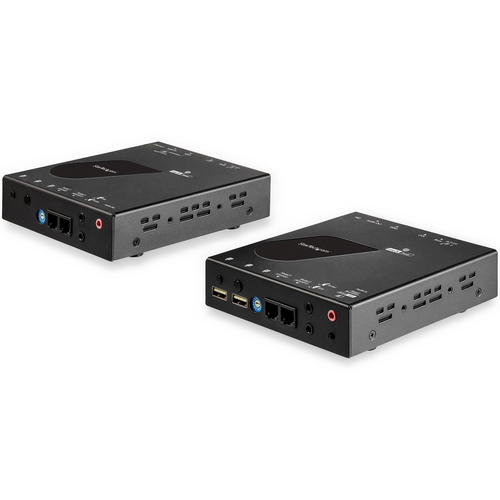

StarTech.com HDMI KVM Extender over IP Network - 4K 30Hz HDMI 2.0 and USB over IP LAN or Cat5e/Cat6 Ethernet Cable (100m/330ft) - Remote KVM Switch/Console Transmitter/Receiver Extender Kit

Manufacturer: Startech | Model: SV565HDIP | Product ID: 6894 | Warranty: 2 Years
£604.12 (inc. VAT)
7 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs8
Number of microphone inputs2
DC-in jackYes
Network
Ethernet LAN (RJ-45) ports2
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Video bandwidth30
Daisy chainNo
Maximum operating distance100
ChipsetASPEED - AST1520
Audio channels7.1
Design
Product colourBlack
Housing materialSteel
LED indicatorsYes
Hot keysNo
Mean time between failures (MTBF)60000
CertificationCE, FCC, TAA, REACH
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
AC input voltage100 - 240
Input current0.6
Output voltage12
Output current1.5
Power consumption (typical)18
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,JP,UK
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width117
Depth130
Height28
Weight610
Packaging data
Package width365
Package depth195
Package height235
Packaging content
Cables includedHDMI,LAN (RJ-45),Phone (RJ-11),USB
Quick installation guideYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width385
Master (outer) case length495
Master (outer) case height265
Products per master (outer) case6
Other features
IP controlNo

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Tue 25th Aug 2026 to Fri 28th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Mon 24th Aug 2026 to Wed 26th Aug 2026
View all Delivery Options & International Rates
KVM Console Extender Over IP | HDMI® | 4K @ 30Hz | 4x USB Ports | EDID Pass-ThroughThis HDMI KVM extender kit lets you use a keyboard, mouse and monitor to remotely control any computer over your IP-enabled local area network (LAN). Combined with a KVM switch, the KVM console extender can be used with multiple computers. The extender features four USB ports that enable you to connect other USB devices, in addition to your keyboard and mouse.Supports UHD 4K 30HzThe HDMI KVM extender delivers astonishing 4K UHD picture quality to your remote display with support for resolutions up to 3840 x 2160p at 30Hz.Hassle-Free InstallationWith a transmitter and a receiver, the KVM extender provides a complete end-to-end solution that supports mounting for tidy installation. Plus, it uses standard CAT5e or CAT6 Ethernet cable, eliminating the expense and hassle of specialized cables and enabling you to use existing network infrastructure.The extender supports EDID pass-through, ensuring your computer can automatically configure optimal settings for your display over your LAN.Versatile Configuration OptionsThe extender uses your local intranet to connect your computers to your remote workstation. You can connect additional receivers (sold separately) to distribute your HDMI signal to multiple displays in your remote location, or combine the source to create a video wall that expands your single video source across multiple displays.For smaller-scale applications, you can connect the transmitter and receiver units directly over CAT5 or CAT6 cabling up to 330 feet (100 meters).SV565HDIP is backed by a 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Ports & interfaces
Keyboard port typeUSB
Mouse port typeUSB
Video port typeHDMI
HDMI ports quantity2
USB hubYes
USB 2.0 Type-A hub ports quantity2
Audio connectionsYes
Headphone outputs8
Number of microphone inputs2
DC-in jackYes
Network
Ethernet LAN (RJ-45) ports2
Performance
HD type4K Ultra HD
Maximum resolution3840 x 2160
Video bandwidth30
Daisy chainNo
Maximum operating distance100
ChipsetASPEED - AST1520
Audio channels7.1
Design
Product colourBlack
Housing materialSteel
LED indicatorsYes
Hot keysNo
Mean time between failures (MTBF)60000
CertificationCE, FCC, TAA, REACH
Display
Built-in displayNo
On Screen Display (OSD)Yes
Power
AC input voltage100 - 240
Input current0.6
Output voltage12
Output current1.5
Power consumption (typical)18
External power adapterYes
Power plug typeType M
Compatible power plug typesAU,EU,JP,UK
Sustainability
Sustainability certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 60
Operating relative humidity (H-H)0 - 80
Weight & dimensions
Width117
Depth130
Height28
Weight610
Packaging data
Package width365
Package depth195
Package height235
Packaging content
Cables includedHDMI,LAN (RJ-45),Phone (RJ-11),USB
Quick installation guideYes
AC adapter includedYes
Rubber feetYes
Logistics data
Harmonized System (HS) code85176200
Master (outer) case width385
Master (outer) case length495
Master (outer) case height265
Products per master (outer) case6
Other features
IP controlNo
