StarTech.com IDE to SATA Hard Drive or Optical Drive Adapter - 40-Pin PATA to 2.5" SATA HDD/SSD/ODD Converter
Product Technical Specification
Ports & interfaces | |
Host interface | IDE |
Output interface | SATA |
Connector(s) | 1 x IDE (40 Pin; EIDE/PATA), 1 x SATA (7+15 pin), 1 x SP4 (4 pin) |
Design | |
Internal | Yes |
Product colour | Red |
Certification | FCC, CE, TAA, REACH |
Features | |
Chipset | Marvell - 88SA8052 |
Data transfer rate (max) | 0.133 |
Logical block addressing (LBA) support | 48 |
Operational conditions | |
Operating temperature (T-T) | 5 - 50 |
Storage temperature (T-T) | -25 - 80 |
Operating relative humidity (H-H) | 15 - 90 |
Technical details | |
Sustainability certificates | RoHS |
Weight & dimensions | |
Width | 20 |
Depth | 75.5 |
Height | 23 |
Weight | 29 |
Packaging data | |
Manual | Yes |
Package width | 175 |
Package depth | 145 |
Package height | 33 |
Package weight | 89 |
Logistics data | |
Harmonized System (HS) code | 84733020 |
Products per master (outer) case | 60 |
Master (outer) case width | 380 |
Master (outer) case length | 496 |
Master (outer) case height | 321 |
Other features | |
Material | Plastic,Steel |
Delivery Options

Economy Delivery (UK)

Business Express

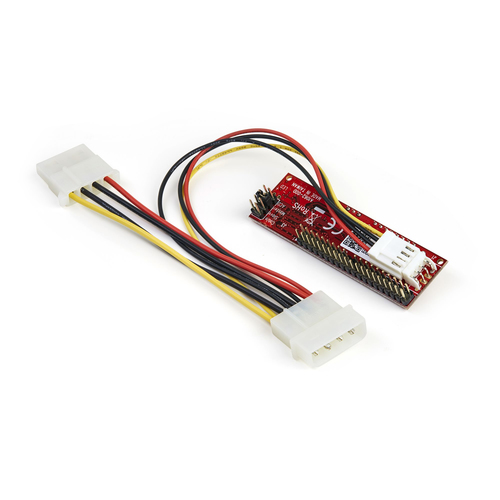

The IDE2SAT2 40-pin IDE to SATA adapter enables you to connect a SATA I/II/III drive to an available IDE/ATA 33/66/100/133 motherboard port - a cost effective solution that allows you to add newer SATA drives, and keep your existing motherboard.
The IDE/SATA adapter offers a cost-effective solution for bridging the gap between a newer 2.5"/3.5"/5.25" SATA drive and older IDE motherboard port. The IDE2SAT2 also features ODD (Optical Disk Drive) support, allowing you to a add Blu-ray, DVD, or CD-ROM drives to an older IDE motherboard.
The IDE/SATA adapter is backed by a StarTech.com 2-year Warranty and free lifetime technical support.
The StarTech.com Advantage
- Blu-ray, DVD and CD-ROM drive compatibility with ODD (Optical Disk Drive) support, from an IDE host connection
- Hassle-free installation, with no software CD required
- Backed by a StarTech.com 2 year warranty and free lifetime technical support
