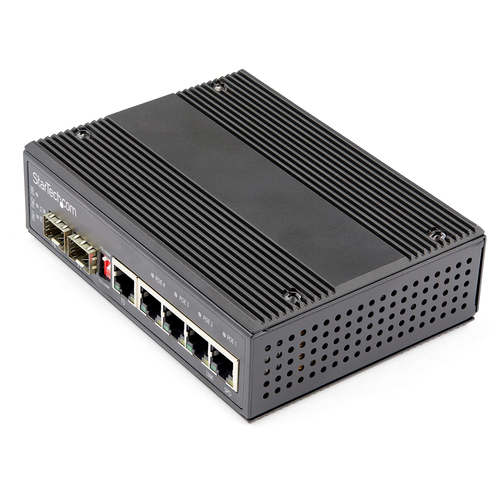

StarTech.com Industrial 6 Port Gigabit Ethernet Switch - 4 PoE RJ45 +2 SFP Slots 30W PoE+ 12-48VDC 10/100/1000 Rugged Power Over Ethernet LAN Switch -40C to 75C - DIN Mountable

Manufacturer: Startech | Model: IES1G52UP12V | Product ID: 5215 | Warranty: 2 Years
£333.89 (inc. VAT)
5 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
Network
Networking standardsIEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T,100BASE-T,1000BASE-T
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
Switching capacity12
Jumbo frames supportYes
Jumbo frames9000
Protocols
Supported network protocolsCSMA/CD
Design
Rack mountingNo
Product colourBlack
Housing materialAluminium,Steel
LED indicatorsActivity,Link,PoE,Power
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
SafetyEN60950-1
CertificationCE, RoHS, FCC
Performance
Buffer size128
Mean time between failures (MTBF)693764
Power
Surge protectionYes
Surge protection voltage2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30
Total Power over Ethernet (PoE) budget120
Operational conditions
Operating temperature (T-T)-40 - 75
Storage temperature (T-T)-40 - 85
Operating relative humidity (H-H)5 - 95
Weight & dimensions
Width105
Depth142
Height43
Weight701.4
Packaging data
Quick start guideYes
Terminal block includedYes
Package width211
Package depth162
Package height64
Package weight946.4
Logistics data
Master (outer) case width355
Master (outer) case length345
Master (outer) case height225
Harmonized System (HS) code85176990
Products per master (outer) case10
Other features
Terminal block portYes

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Rugged Ethernet Switch | 5 RJ45 (4 PoE) | 2 SFP Slots | 30W PoE+ | 12V-48V DCEasily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.Power Over Ethernet & Low VoltageIdeal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:• Cameras• Sensors• Wi-Fi access pointsUses Cat 5e (or higher rated) Ethernet cabling.Flexible Power Input & Low VoltagePower input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.• Vibration: EN 60068-2-6• Shock: EN 60068-2-27• Free-Fall: EN 60068-2-32Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.Dual Power InputsDual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.The StarTech.com Advantage
Management features
Switch typeUnmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
SFP module slots quantity2
Network
Networking standardsIEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T,100BASE-T,1000BASE-T
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
Switching capacity12
Jumbo frames supportYes
Jumbo frames9000
Protocols
Supported network protocolsCSMA/CD
Design
Rack mountingNo
Product colourBlack
Housing materialAluminium,Steel
LED indicatorsActivity,Link,PoE,Power
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
SafetyEN60950-1
CertificationCE, RoHS, FCC
Performance
Buffer size128
Mean time between failures (MTBF)693764
Power
Surge protectionYes
Surge protection voltage2
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity4
Power over Ethernet (PoE) power per port30
Total Power over Ethernet (PoE) budget120
Operational conditions
Operating temperature (T-T)-40 - 75
Storage temperature (T-T)-40 - 85
Operating relative humidity (H-H)5 - 95
Weight & dimensions
Width105
Depth142
Height43
Weight701.4
Packaging data
Quick start guideYes
Terminal block includedYes
Package width211
Package depth162
Package height64
Package weight946.4
Logistics data
Master (outer) case width355
Master (outer) case length345
Master (outer) case height225
Harmonized System (HS) code85176990
Products per master (outer) case10
Other features
Terminal block portYes
