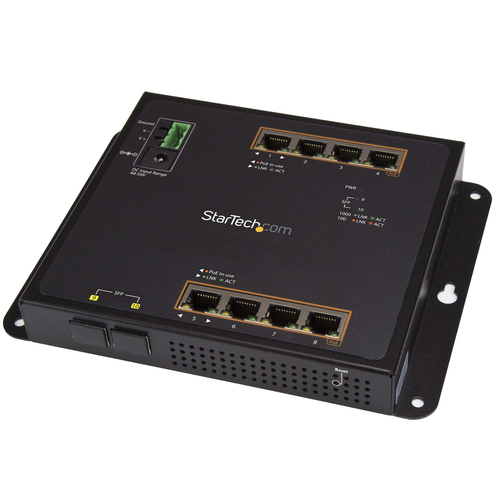

StarTech.com Industrial 8 Port Gigabit PoE+ Switch w/2 SFP MSA Slots - 30W - Layer/L2 Switch Hardened GbE Managed - Rugged High Power Gigabit Ethernet Network Switch IP-30/-40 C to 75 C
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Virtual LAN features | Tagged VLAN |
| Data transmission | |
| Store-and-forward | Yes |
| Security | |
| Access Control List (ACL) | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Activity,Link |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| Certification | CE, FCC, RoHS |
| Performance | |
| Maximum cable length | 100 |
| Buffer size | 512 |
| Maximum data transfer rate | 2000 |
| Mean time between failures (MTBF) | 100000 |
| Power | |
| Input current | 1 |
| Input voltage | 12 - 48 |
| Power plug type | Type M |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 200 |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 |
| Storage temperature (T-T) | -40 - 90 |
| Operating relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 178 |
| Depth | 134 |
| Height | 25 |
| Weight | 618 |
| Packaging data | |
| Quick start guide | Yes |
| Terminal block included | Yes |
| Package width | 170 |
| Package depth | 300 |
| Package height | 90 |
| Package weight | 900 |
| Logistics data | |
| Master (outer) case width | 325 |
| Master (outer) case length | 370 |
| Master (outer) case height | 470 |
| Harmonized System (HS) code | 85176990 |
| Products per master (outer) case | 10 |
| Other features | |
| Terminal block port | Yes |
