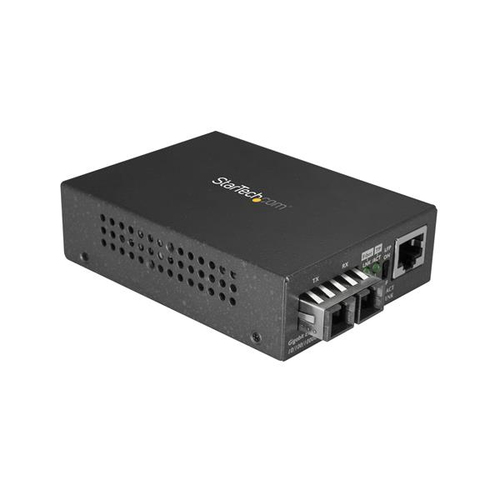

StarTech.com Multimode (MM) SC Fiber Media Converter for 10/100/1000 Network - 550m Range - Gigabit Ethernet - 850nm - Full Duplex

Manufacturer: Startech | Model: MCMGBSCMM055 | Product ID: 5280 | Warranty: 2 Years
£83.31 (inc. VAT)
22 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Network
Maximum data transfer rate1000
Converter input interface100Base-TX,1000Base-T
Converter output interface1000Base-SX
Networking standardsIEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Ethernet interface typeFast Ethernet,Gigabit Ethernet
Ethernet LAN data rates10,100,1000
Jumbo frames supportYes
Jumbo frames9000
Flow control supportYes
Auto MDI/MDI-XYes
Store-and-forwardYes
Duplex systemFull
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSC
Performance
Maximum transfer distance550
Wavelength850
Wavelength-division multiplexing (WDM)No
Fiber mode structureMulti-mode
Mean time between failures (MTBF)50000
Design
InternalNo
LED indicatorsActivity,Link,Power
Product colourBlack
Housing materialSteel
CertificationCE, FCC, REACH
Power
Input voltage100 - 240
Input current0.5
Output voltage5
Output current2.6
Power consumption (typical)5
External power adapterYes
Power plug typeType N
Weight & dimensions
Width97
Depth70
Height26
Weight200
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-10 - 70
Operating relative humidity (H-H)5 - 90
Packaging data
Package width280
Package depth133
Package height66
Package weight564
Packaging content
AC adapter includedYes
Quick installation guideYes
Technical details
Sustainability certificatesRoHS
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width595
Master (outer) case length375
Master (outer) case height320
Products per master (outer) case20

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Mon 17th Mar 2025 to Thu 20th Mar 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sun 16th Mar 2025 to Tue 18th Mar 2025
View all Delivery Options & International Rates
Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
