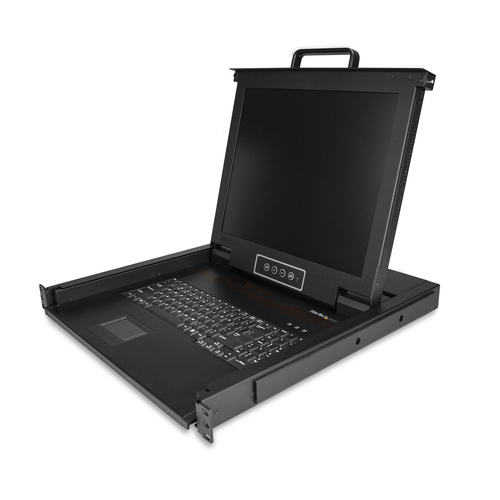

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF

Manufacturer: Startech | Model: RKCONS1701 | Product ID: 6057 | Warranty: 2 Years
£747.89 (inc. VAT)
8 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Display
Display diagonal17
Display resolution1280 x 1024
Display brightness250
Contrast ratio (typical)1000:1
Viewing angle, horizontal170
Viewing angle, vertical160
Pixel pitch0.264 x 0.264
Aspect ratio5:4
Display typeLCD
Response time5
Display number of colours16.78 million colours
Colour depth8
Technical details
MaterialSteel
Mean time between failures (MTBF)50000
Operating relative humidity (H-H)10 - 80
Rack mountingYes
Daisy chainNo
Key lockNo
IP controlNo
LED indicatorsPower,Status
Cable length1.82
Sustainability certificatesRoHS
Rack capacity1U
Ports & interfaces
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
Certificates
CertificationCE, FCC, PSE, UL
Power
Power consumption (typical)13
AC adapter input voltage100 - 240
Input current1.5
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Weight & dimensions
Width448
Height471
Depth42.5
Weight11600
Mounting depth (min)450
Mounting depth (max)790
Packaging data
Package weight17100
Package width615
Package depth765
Package height185
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Mounting brackets includedYes
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ,EU,JP,NA,UK
Quick installation guideYes
Rack mount kitYes
Logistics data
Master (outer) case width615
Master (outer) case length765
Master (outer) case height185
Products per master (outer) case1

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included

Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This single-port KVM console includes everything you need to set up right out of the box:

1 VGA KVM Cable

Mounting Rails

M5 Cage Nuts and Screws

Simple System Integration

The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
