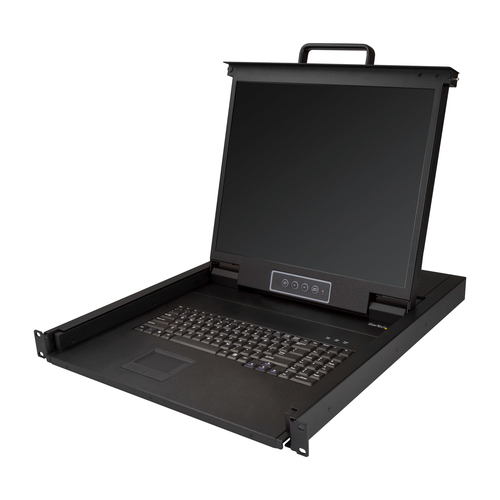

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 19" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF
Product Technical Specification
| Display | |
| Display diagonal | 19 |
| Display resolution | 1280 x 1024 |
| Display brightness | 250 |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 176 |
| Viewing angle, vertical | 170 |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 |
| Aspect ratio | 4:3 |
| Display type | LCD |
| Display number of colours | 16.78 million colours |
| Technical details | |
| Material | Steel |
| Mean time between failures (MTBF) | 50000 |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80 |
| Audio support | No |
| Daisy chain | Yes |
| Key lock | No |
| IP control | No |
| LED indicators | Yes |
| Sustainability certificates | RoHS |
| Rack capacity | 1U |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Certificates | |
| Certification | CE, FCC |
| Power | |
| Power consumption (typical) | 17 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Weight & dimensions | |
| Width | 483 |
| Height | 430 |
| Depth | 533 |
| Weight | 12200 |
| Mounting depth (min) | 500 |
| Mounting depth (max) | 780 |
| Packaging data | |
| Package weight | 16000 |
| Package width | 615 |
| Package depth | 765 |
| Package height | 190 |
| Packaging content | |
| Cables included | AC,KVM |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Included power plug types | ANZ,EU,JP,NA,UK |
| Quick installation guide | Yes |
| Logistics data | |
| Master (outer) case width | 615 |
| Master (outer) case length | 765 |
| Master (outer) case height | 190 |
| Products per master (outer) case | 1 |
Delivery Options
Economy Delivery (UK)
Business Express
This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.
Maximize your IT budget, minimize your hassle
This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.
Maximize your screen space
This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.
Clutter-free monitoring
The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.
Hassle-free system integration
The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.
The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 19" Active Matrix TFT 1280 x 1024 LCD
- 1U height
