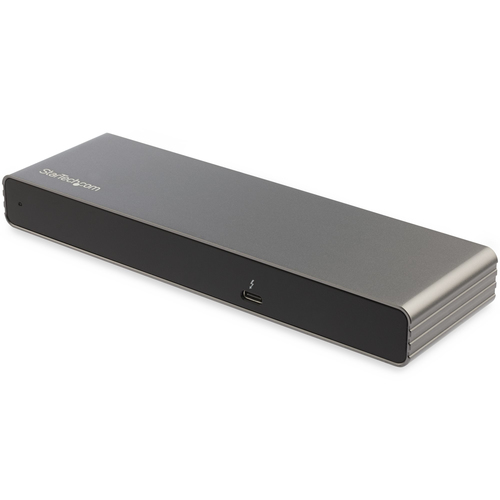

StarTech.com Thunderbolt 3 Dock - Dual 4K 60Hz Monitor TB3 Laptop Docking Station with DisplayPort, HDMI & 1080p VGA - 85W Power Delivery & Charging - 2x USB-A, Ethernet - Mac & Windows
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 85 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Microphone in | No |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Full duplex | Yes |
| Performance | |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 4096 x 2160 |
| Product colour | Grey |
| UASP support | Yes |
| Housing material | Aluminium |
| Certification | CE, FCC, REACH |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| Input current | 1.8 |
| Output voltage | 19 |
| Output current | 6.32 |
| Power consumption (typical) | 120 |
| Power plug type | Type N |
| Compatible power plug types | EU,UK |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 20 - 80 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 58.6 |
| Depth | 196 |
| Height | 24 |
| Weight | 340 |
| Packaging data | |
| Package width | 187 |
| Package depth | 254 |
| Package height | 65 |
| Package weight | 1300 |
| Packaging content | |
| Cables included | AC,Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Products per master (outer) case | 20 |
| Master (outer) case width | 390 |
| Master (outer) case length | 676 |
| Master (outer) case height | 280 |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Cable length | 0.5 |
| Chipset | Intel - Alpine Ridge JHL6540, Intel - WGI210AT, ASMedia - ASM1042A, Parade - PS176, Chrontel - CH7517 |
Delivery Options
Economy Delivery (UK)
Business Express
Create a powerful and flexible workstation with this Thunderbolt 3 dock. With dedicated dual video output, you can connect your Thunderbolt 3 equipped MacBook Pro or Windows laptop to two 4K monitors, through a single Thunderbolt 3 cable.
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.
Speed & Flexibility with 3 Monitor Options
Great for editing 4K video or other Ultra HD tasks, this Thunderbolt 3 docking station supports 40Gbps speeds and 4K resolution at 60Hz on two monitors. Enjoy ultimate flexibility in setting up your workstation, with monitor options including DisplayPort (DP), HDMI and VGA.
The dock offers many dedicated dual-video options:
2x DisplayPort (4096 x 2160p @ 60Hz)
1x DisplayPort + 1 HDMI (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x DisplayPort (4096 x 2160p @ 60Hz)
1x VGA (1920 x 1200p @ 60Hz) + 1x HDMI (4096 x 2160p @ 60Hz)
The Ports You Need Most
Harness the reliability and speed of a wired network connection with the Gigabit Ethernet port (supporting PXE Boot and Wake-on-LAN). Connect your USB devices with two USB 3.0 Type-A ports.
Power & Charge with 85W Power Delivery
Through a single 120W power adapter, the Thunderbolt 3 docking station simultaneously powers and charges your laptop and your attached peripherals while it’s docked. It provides up to 85W of charging power through Power Delivery.
The TB3DK2DHVUE is fully Thunderbolt 3 Certified and backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HIGH PERFORMANCE FEATURES: This Thunderbolt 3 certified dock supports dual 4K60Hz on DisplayPort and HDMI, 1080p VGA, 85W Power Delivery for laptop charging, 2-port USB-A hub & gigabit Ethernet ports
- FLEXIBLE MONITOR COMBINATIONS: Offers support for new and legacy monitors in mulitple video output combinations. Dual DP, DP + HDMI, DP + VGA, or HDMI + VGA for creative and productivity usage.
- EASY TO DEPLOY & SETUP: Thunderbolt 3 Dock requires no driver setup or additional display adapters and with the included Thunderbolt 3 cable and front facing host port, this dock is easy to install
