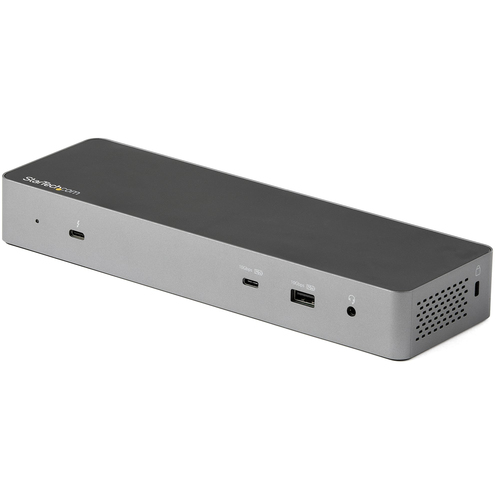

StarTech.com Thunderbolt 3 Dock w/ USB-C Host Compatibility - Dual 4K 60Hz DisplayPort 1.4 or Dual HDMI Monitors - Single 8K - TB3/USB-C Laptop Docking Station - 96W PD, 5xUSB - 10Gbps
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 96 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 40 |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black,Grey |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 2.5 |
| Output voltage | 20 |
| Output current | 8.5 |
| Compatible power plug types | EU,UK |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS,Ubuntu 20.04 LTS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
| Width | 220 |
| Depth | 80 |
| Height | 30 |
| Weight | 250 |
| Packaging data | |
| Package width | 305 |
| Package depth | 160 |
| Package height | 110 |
| Package weight | 1100 |
| Packaging content | |
| Cables included | AC,Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Products per master (outer) case | 40 |
| Master (outer) case width | 248 |
| Master (outer) case length | 500 |
| Master (outer) case height | 320 |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
Delivery Options
Economy Delivery (UK)
Business Express
A high-performance Thunderbolt 3 Certified docking station with USB Type-C compatibility featuring dual monitor 4K 60Hz DSC support from either Dual or dual HDMI 2.0 video outputs, 96W Power Delivery (100W peak power), 5x USB 3.2 Hub with 2x BC 1.2 fast charging ports, gigabit Ethernet & headset ports.
Flexible Dual Display Outputs
This universal docking station features both dual DisplayPort 1.4 (Single 8K30 on HBR3 host) and dual HDMI video outputs that can be configured in three different ways:
DisplayPort + DisplayPort
HDMI + HDMI
DisplayPort + HDMI
Resolutions and video outputs are host-dependent.
Host Output
DCS Status
Single Video
Dual Video
Thunderbolt with DP 1.4 (nVidia Graphics)
Off
8K (7680 x 4320) @ 30Hz (DP Only)
n/a
Thunderbolt with DP 1.4 (nVidia Graphics)
Off
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.4 (nVidia Graphics)
On
4K (3840x2160) @144Hz
n/a
Thunderbolt with DP 1.4 (nVidia Graphics)
On
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.4 (Intel Graphics)
n/a
5K (5120x2880) @60Hz (DP Only)
n/a
Thunderbolt with DP 1.4 (Intel Graphics)
n/a
n/a
2x 4K (3840x2160) @60Hz
Thunderbolt with DP 1.2
n/a
4K (3840x2160) @60Hz
n/a
Thunderbolt with DP 1.2
n/a
n/a
2x 4K (3840x2160) @60Hz
USB Type-C DP Alternate Mode DP 1.4
Off
4K (3840x2160) @30Hz
n/a
USB Type-C DP Alternate Mode DP 1.4
Off
n/a
2x QHD (2560x1440)
USB Type-C DP Alternate Mode DP 1.4
On
5K (5120x2880) @60Hz (DP Only)
n/a
USB Type-C DP Alternate Mode DP 1.4
On
n/a
2x 4K (3840x2160) @60Hz
USB Type-C DP Alternate Mode DP 1.2
n/a
4K (3840x2160) @30Hz
n/a
USB Type-C DP Alternate Mode DP 1.2
n/a
n/a
2x 1080p (1920x1080) @ 60Hz
More Downstream USB Ports
Featuring an integrated USB 3.2 hub, this docking station has 5 downstream USB ports:
Front Facing:
1x USB 3.2 Gen 2 Type-C (10 Gbps) with 15W (3A, 5V) Charging
1x USB 3.2 Gen 2 Type-A (10 Gbps) with B.C. 1.2 Fast-Charging
Back Facing:
2x USB 3.2 Gen 1 Type-A (5 Gbps)
1x USB 3.2 Gen 2 Type-C (10 Gbps)
Easy to Set Up & Manage
This universal Thunderbolt 3 / USB-C Dock has an automatic driver setup and includes a longer 0.8 meter (2.6 ft) Thunderbolt 3 host cable, front-facing TB3/USB-C host port, front-facing LED indicator, mounting holes for the optional bracket, k-slot for security lock & MAC address changer utility.
Connected Device Transparency with the StarTech.com MAC Address Changer Utility
The TB3CDK2DHUE includes a free Windows application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer's MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.
TB3CDK2DHUE is backed by a StarTech.com three-year warranty and free lifetime technical support.
The StarTech.com Advantage
- FULL FUNCTION DOCK: Thunderbolt 3 docking station with USB-C compatibility features dual monitor 4K 60Hz, 96W PD, 5x USB Hub (incl 2x BC 1.2 charging ports) with 3x USB-A (1x 10Gbps USB 3.2/3.1 Gen 2) & 2x USB-C 10Gbps; Gigabit Ethernet, headset ports
- 96W CERTIFIED POWER DELIVERY: Thunderbolt 3 / USB Type-C Dock can deliver up to 100W peak power (96W sustained) and charge high performance laptops, Ultrabooks & workstation laptop computers such as MacBook Pro 16, HP, Lenovo ThinkPad & Dell XPS
- FLEXIBLE MONITOR OUTPUTS: Thunderbolt 3 docking station features dual DisplayPort 1.4 w/ DSC (single 8K 30Hz) or dual HDMI 2.0 video outputs w/ options for dual DP, dual HDMI or DP + HDMI displays at dual 4K 60Hz on both TB3 & USB-C (non TB3) laptops
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 96 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Card reader integrated | No |
| Data transfer rate | 40 |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 2 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black,Grey |
| Power | |
| AC input voltage | 100 - 240 |
| Input current | 2.5 |
| Output voltage | 20 |
| Output current | 8.5 |
| Compatible power plug types | EU,UK |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 11,Windows 11 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64 |
| Mac operating systems supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
| Linux operating systems supported | Ubuntu 18.04 LTS,Ubuntu 20.04 LTS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 35 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 95 |
| Weight & dimensions | |
| Width | 220 |
| Depth | 80 |
| Height | 30 |
| Weight | 250 |
| Packaging data | |
| Package width | 305 |
| Package depth | 160 |
| Package height | 110 |
| Package weight | 1100 |
| Packaging content | |
| Cables included | AC,Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Logistics data | |
| Products per master (outer) case | 40 |
| Master (outer) case width | 248 |
| Master (outer) case length | 500 |
| Master (outer) case height | 320 |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Chipset | C-Media - CM6533, Genesys Logic - GL3590, Genesys Logic - GL3523, Realtek - RTD2184, Titan Ridge - JHL7440, Cypress - CCG5C |
