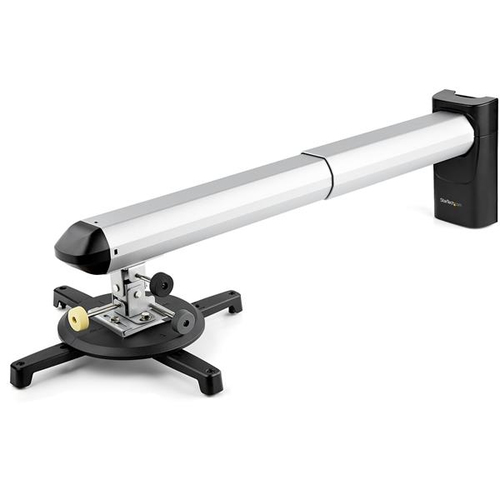

StarTech.com Universal Projector Wall Mount - Projector Mount supports Short & Ultra Short Throw Projectors up to 33lb (15kg) - Tilt/Swivel/Rotate - Adjustable 16.5" to 27.7" from Wall
Product Technical Specification
| Performance | |
| Mounting type | Wall |
| Maximum weight capacity | 15 |
| Product colour | Black,Silver |
| Housing material | Aluminium,Plastic,Steel |
| Adjustable arm | Yes |
| Swivel angle | 360 |
| Tilt angle range | -25 - 25 |
| Distance to the wall (min) | 420 |
| Distance to the wall (max) | 705 |
| Certification | CE, RoHS |
| Weight & dimensions | |
| Width | 180 |
| Height | 735 |
| Depth | 195 |
| Weight | 3414 |
| Package width | 285 |
| Package depth | 570 |
| Package height | 145 |
| Package weight | 4400 |
| Packaging content | |
| Screws included | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Number of anchors included | 6 |
| Number of screws | 26 |
| Number of washers included | 4 |
| Number of nuts | 4 |
| Screwdriver included | Yes |
| Logistics data | |
| Quantity per pack | 1 |
| Products per master (outer) case | 1 |
| Harmonized System (HS) code | 83024190 |
| Master (outer) case width | 285 |
| Master (outer) case length | 570 |
| Master (outer) case height | 145 |
Delivery Options
Economy Delivery (UK)
Business Express
The adjustable mount for short throw projectors helps you create a large image from a short distance and keeps your projector out of the way. It’s ideal for classrooms, boardrooms, hospitality venues, and many other meeting spaces.
Wide Compatibility with Short Throw Projectors
Supporting a wide range of projector brands, the short throw projector wall mount features a universal mounting pattern of 12.8" (325 mm) diameter and supports a weight capacity of 33.3 lb. (15 kg).
Adjust the Distance from the Wall
Adjust the distance of your projector from the wall using the telescopic arm, which extends from 16.5” to 27.7” (420 mm to 705 mm). The arm on the low-profile projector wall mount also tilts +5/- 5 degrees to help you find the ideal position. The lockable ball joint on the adjustable projector mount provides 360-degree swivel, +/- 25 degree horizontal / vertical tilt.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
PROJWALLMNT is backed by a StarTech.com 2-year warranty and free, lifetime technical support
The StarTech.com Advantage
- UNIVERSAL PROJECTOR WALL MOUNT: Supports short throw & ultra-short throw projectors w/ mounting hole pattern ranging up to 12.8" (325mm) in diameter; supports projectors up to 33.1lb (15kg)
- ADJUSTABLE PROJECTOR MOUNT: Supports both short and ultra short throw projectors; The arm allows you to position a projector between 16.5" & 27.7" from the wall (w/ incl tools) to adjust throw ratio
- PRECISE ADJUSTABILITY: Easily optimize projector placement with 3 color coded dials for +/-10° swivel, +/-5° tilt (pitch), +/-10° rotate (roll); +/-20mm lateral shift; Secure adjustment w/ incl wrench
