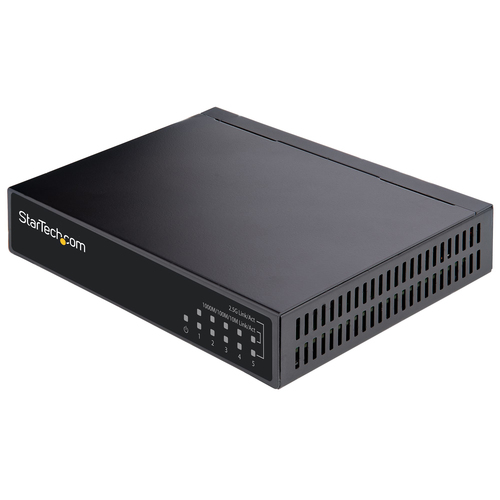

StarTech.com Unmanaged 2.5G Switch - 5 Port Gigabit Switch - 2.5GBASE-T Unmanaged Ethernet Switch - Ethernet Splitter - Din Rail or Wall Mount - Multi-Gigabit - Auto-MDIX - 9K Jumbo

Manufacturer: Startech | Model: DS52000 | Product ID: 7120 | Warranty: 2 Years
£55.14 (inc. VAT)
8 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T,1000BASE-TX,2500BASE-T
Cable types supportedCat5e,Cat6,Cat6a
Full duplexYes
Auto MDI/MDI-XYes
Data transmission
Switching capacity2.5
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Wall mountableYes
Performance
Maximum cable length100
Power
Power sourceAC/DC
Power supply includedYes
AC input voltage100 - 240
Input current0.5
Output voltage12
Output current1
Power plug typeType M
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 45
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)10 - 90
Weight & dimensions
Width120
Depth145
Height30
Weight600
Packaging data
Quick start guideYes
Wall mounting kitYes
AC adapter includedYes
Package width285
Package depth135
Package height70
Package weight700
Sustainability
Sustainability certificatesCE,RoHS
Logistics data
Master (outer) case width305
Master (outer) case length370
Master (outer) case height290
Harmonized System (HS) code85176990
Products per master (outer) case10

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
2.5G switch | Multi-Gigabit | 5 port | Unmanaged | Cat5e/Cat6/Cat6a cabling | Wall mount kit | K-slotThe unmanaged network switch offers five multi-speed Ethernet ports (10/100/1000/2500 Mbps) in a compact and durable all-metal casing while remaining silent and energy-efficient (IEEE 802.3az). The network switch is the ideal solution to dramatically speed up your network to support 2.5GBASE-T, and being an unmanaged switch, you can set it up in no time.Enhance your networkThis network switch allows you to use existing Cat5e/Cat6/Cat6a cabling to increase the bandwidth to 2.5 Gbps, ideal for large file transfers, streaming, network sharing/storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility. You can also use it in combination with Wi-Fi 6 (802.11ax) wireless access points to expand your network range, bandwidth, and accessibility.Secure and versatileThe 2.5G switch offers a security K-slot for more permanent and secure setups (cable not included). The unintrusive design and small dimensions (6.1x4.7x1.1 inch / 155x120x30 mm) make it easily adaptable to any deployment and has clear diagnostic LEDs that show the status of the devices at a glance. Additional features such as 9K jumbo frames, full-duplex, 16K MAC address table, QoS IEEE 802.1p, and wall mounting kit give you the flexibility to use it in a multitude of scenarios.The DS52000 is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports type2.5G Ethernet (100/1000/2500)
2.5G Ethernet (copper) ports quantity5
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T,1000BASE-TX,2500BASE-T
Cable types supportedCat5e,Cat6,Cat6a
Full duplexYes
Auto MDI/MDI-XYes
Data transmission
Switching capacity2.5
Store-and-forwardYes
Jumbo frames supportYes
Jumbo frames9000
Design
Rack mountingNo
Product colourBlack
Housing materialSteel
LED indicatorsYes
Wall mountableYes
Performance
Maximum cable length100
Power
Power sourceAC/DC
Power supply includedYes
AC input voltage100 - 240
Input current0.5
Output voltage12
Output current1
Power plug typeType M
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 45
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)10 - 90
Weight & dimensions
Width120
Depth145
Height30
Weight600
Packaging data
Quick start guideYes
Wall mounting kitYes
AC adapter includedYes
Package width285
Package depth135
Package height70
Package weight700
Sustainability
Sustainability certificatesCE,RoHS
Logistics data
Master (outer) case width305
Master (outer) case length370
Master (outer) case height290
Harmonized System (HS) code85176990
Products per master (outer) case10
