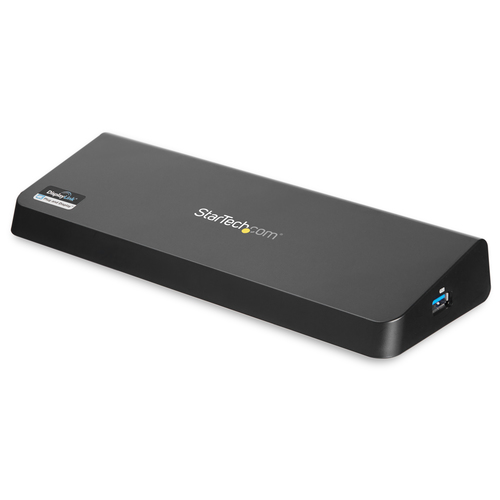

StarTech.com USB 3.0 Docking Station Dual Monitor with HDMI & 4K DisplayPort - USB 3.0 to 4x USB-A, Ethernet, HDMI and DP - USB Type A Universal Laptop Docking Station for Mac & Windows

Manufacturer: Startech | Model: USB3DOCKHDPC | Product ID: 5456 | Warranty: 3 Years
£114.46 (inc. VAT)
23 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Headphone connectivity3.5 mm
USB connector typeUSB Type-A
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000
Wake-on-LAN readyYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5
Maximum digital resolution3840 x 2160
Cable lock slotYes
Product colourBlack
LED indicatorsActivity,Link
Charging functionYes
UASP supportYes
Housing materialPlastic,Steel
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink
Power
AC input voltage100-240
Input current1.5
Output voltage5
Output current6.5
Power consumption (typical)32.5
Compatible power plug typesAU,EU,UK,US
Software
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 80
Operating relative humidity (H-H)0 - 90
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width76
Depth227
Height24
Weight277
Packaging data
Package width251
Package depth198
Package height71
Package weight1100
Packaging content
Cables includedAC,USB
AC adapter includedYes
ManualYes
Drivers includedYes
Logistics data
Products per master (outer) case10
Master (outer) case width370
Master (outer) case length415
Master (outer) case height275
Products per shipping (inner) case150
Harmonized System (HS) code84733020
Other features
Cable length0.6
ChipsetDisplayLink - DL-5900, VLI - VL812
USB data transfer rates5000

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Laptop Docking Station | Mac & Windows | USB Fast Charge Port | 4 USB Ports | TAA Compliant

This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).

4K Ultra HD Resolutions 

This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).

Maximum Supported Resolutions*

Video Output Configuration

Max DisplayPort Resolution

Max HDMI Resolution

DisplayPort

(Single Display)

3840 x 2160p (4K)

N/A

HDMI

(Single Display)

N/A

2560 x 1440p

DisplayPort and HDMI

(Two Displays)

2048 x 1152p

2048 x 1152p

*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.

Integrated USB 3.0 Hub

The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

USB Fast Charge 

The USB 3.0 dock’s always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.

Direct Ethernet Connectivity

The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.

Easy to Use 

This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.  

StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.

The StarTech.com Advantage

- FULL FEATURE DOCK: USB 3.0 Type-A dock with dual monitor options (HDMI & DisplayPort), 4x USB-A 5Gbps ports (one Fast Charge), Gigabit Ethernet, headset audio port, and K-slot for securing the dock
- FLEXIBLE DISPLAY SETUP: This docking station supports different display options with dual monitors DP & HDMI (2048 x 1152p and 1920 x 1080p), single DP (4K 30Hz) OR single HDMI (up to 2560 x 1440p)
- USB-A LAPTOP COMPATIBILITY: This DisplayLink certified laptop computer docking station works with new or legacy laptops from brands like HP, Dell, Lenovo, Microsoft Surface Pro, and Chromebooks
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Headphone connectivity3.5 mm
USB connector typeUSB Type-A
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000
Wake-on-LAN readyYes
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5
Maximum digital resolution3840 x 2160
Cable lock slotYes
Product colourBlack
LED indicatorsActivity,Link
Charging functionYes
UASP supportYes
Housing materialPlastic,Steel
Brand compatibilityAny brand
CertificationCE, FCC, DisplayLink
Power
AC input voltage100-240
Input current1.5
Output voltage5
Output current6.5
Power consumption (typical)32.5
Compatible power plug typesAU,EU,UK,US
Software
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 80
Operating relative humidity (H-H)0 - 90
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width76
Depth227
Height24
Weight277
Packaging data
Package width251
Package depth198
Package height71
Package weight1100
Packaging content
Cables includedAC,USB
AC adapter includedYes
ManualYes
Drivers includedYes
Logistics data
Products per master (outer) case10
Master (outer) case width370
Master (outer) case length415
Master (outer) case height275
Products per shipping (inner) case150
Harmonized System (HS) code84733020
Other features
Cable length0.6
ChipsetDisplayLink - DL-5900, VLI - VL812
USB data transfer rates5000
