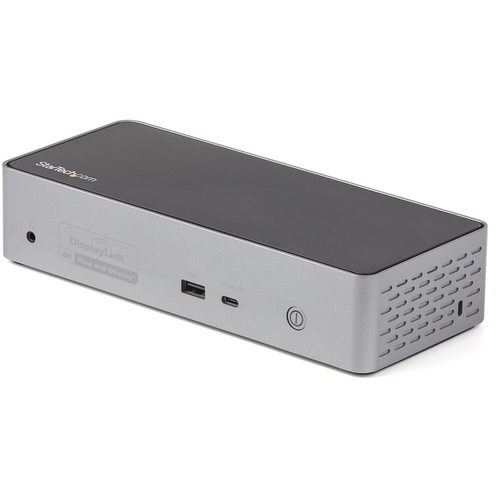

StarTech.com USB C Dock - 4K 60Hz Quad Monitor DisplayPort & HDMI - Universal USB-C Docking Station with 100W Power Delivery - USB Hub with 1x USB Type-C & 3x USB-A, Ethernet, Audio
Product Technical Specification
Ports & interfaces | |
Connectivity technology | Wired |
Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB Power Delivery | Yes |
USB Power Delivery up to | 100 |
HDMI ports quantity | 4 |
HDMI version | 2.0 |
DisplayPorts quantity | 4 |
DisplayPort version | 1.2 |
Combo headphone/mic port | Yes |
Headphone connectivity | 3.5 mm |
DC-in jack | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wake-on-LAN ready | Yes |
Performance | |
Card reader integrated | No |
Data transfer rate | 10 |
Maximum digital resolution | 5120 x 2880 |
Maximum refresh rate | 60 |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product colour | Black,Grey |
LED indicators | Yes |
Power | |
AC input voltage | 100 - 240 |
Output voltage | 20 |
Output current | 8.5 |
Compatible power plug types | EU,UK |
Software | |
Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64,Windows 11 x64 |
Mac operating systems supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
Other operating systems supported | ChromeOS |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 |
Storage temperature (T-T) | -20 - 70 |
Operating relative humidity (H-H) | 0 - 95 |
Sustainability | |
Sustainability certificates | CE |
Weight & dimensions | |
Width | 90 |
Depth | 215 |
Height | 46 |
Weight | 330 |
Packaging data | |
Package width | 145 |
Package depth | 233 |
Package height | 100 |
Package weight | 360 |
Packaging content | |
Cables included | USB |
AC adapter included | Yes |
Manual | Yes |
Logistics data | |
Products per master (outer) case | 4 |
Master (outer) case width | 240 |
Master (outer) case length | 410 |
Master (outer) case height | 160 |
Harmonized System (HS) code | 84733020 |
Other features | |
Chipset | DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153 |
Delivery Options

Economy Delivery (UK)

Business Express
HDMI & DisplayPort for Four Monitor Outputs
This USB-C Gen 2 docking station with DP 1.2 and HDMI 2.0 HDR support, is a perfect choice for dual, triple, or quad monitor setup, supporting up to quad 4K 60Hz display output, with any combination of four DisplayPort or HDMI video interfaces, on USB-C Gen 2 laptops, MacBooks (including M1 based systems) and Windows-based Thunderbolt 3 laptops.
Power & Charge with 100W Power Delivery
Power and charge USB-C/Thunderbolt 3 workstation laptops & ultrabooks with 100 watt PD. Higher power delivery, more than other USB-C 10Gbps quad monitor docks.
Charge smartphones and other high powered devices with two downstream front-facing charging ports with BC 1.2 for USB-A and USB-C devices. Fast-charge ports support always-on charging so devices will charge whether or not a host laptop is connected.
Additional Security Features
This USB-C docking station comes with plenty of security features a K-slot for a Kensington style laptop lock and holes to mount the dock on the desk or wall and includes a USB-IF Certified 1m USB-C cable.
Extra Ventilation
USB-C dock features optimized ventilation on both ends and bottom side of dock to provide cooling support to higher temperature thermals that can be generated by high performance video/graphics applications and multiple 4K 60Hz video outputs.
Ports & interfaces | |
Connectivity technology | Wired |
Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
USB Power Delivery | Yes |
USB Power Delivery up to | 100 |
HDMI ports quantity | 4 |
HDMI version | 2.0 |
DisplayPorts quantity | 4 |
DisplayPort version | 1.2 |
Combo headphone/mic port | Yes |
Headphone connectivity | 3.5 mm |
DC-in jack | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Wake-on-LAN ready | Yes |
Performance | |
Card reader integrated | No |
Data transfer rate | 10 |
Maximum digital resolution | 5120 x 2880 |
Maximum refresh rate | 60 |
Cable lock slot | Yes |
Cable lock slot type | Kensington |
Product colour | Black,Grey |
LED indicators | Yes |
Power | |
AC input voltage | 100 - 240 |
Output voltage | 20 |
Output current | 8.5 |
Compatible power plug types | EU,UK |
Software | |
Windows operating systems supported | Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home x64,Windows 10 Pro x64,Windows 10 x64,Windows 11 x64 |
Mac operating systems supported | Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.15.3 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura |
Other operating systems supported | ChromeOS |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 |
Storage temperature (T-T) | -20 - 70 |
Operating relative humidity (H-H) | 0 - 95 |
Sustainability | |
Sustainability certificates | CE |
Weight & dimensions | |
Width | 90 |
Depth | 215 |
Height | 46 |
Weight | 330 |
Packaging data | |
Package width | 145 |
Package depth | 233 |
Package height | 100 |
Package weight | 360 |
Packaging content | |
Cables included | USB |
AC adapter included | Yes |
Manual | Yes |
Logistics data | |
Products per master (outer) case | 4 |
Master (outer) case width | 240 |
Master (outer) case length | 410 |
Master (outer) case height | 160 |
Harmonized System (HS) code | 84733020 |
Other features | |
Chipset | DisplayLink - DL6910, Realtek - RTS5423, Realtek - RTS5411/RTS5411E, Realtek - RTL8153 |
