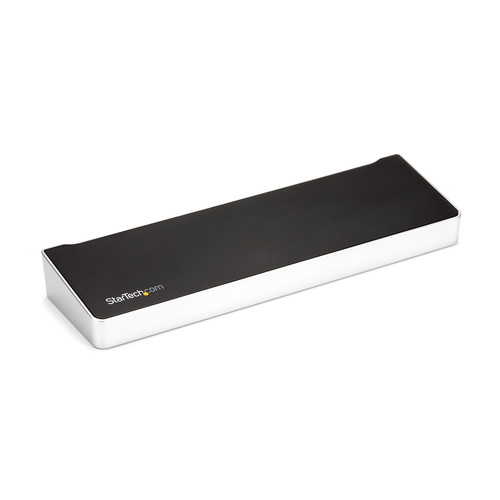

StarTech.com USB-C Dock - 4K Triple Monitor Laptop Docking Station with Dual DisplayPort & HDMI - 100W Power Delivery - USB-C, 4x USB-A Hub - USB 3.1 Gen 1 Type-C Dock - Windows & Mac

Manufacturer: Startech | Model: DK30CH2DEPUE | Product ID: 5690 | Warranty: 3 Years
£157.80 (inc. VAT)
2 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power DeliveryYes
USB Power Delivery up to100
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portYes
Headphone outputs2
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5
Maximum digital resolution5120 x 2880
Cable lock slotYes
Product colourBlack,Silver
On/off switchYes
UASP supportYes
Rubber feetYes
Housing materialPlastic
CertificationCE, FCC, TAA, REACH
Power
AC input voltage100 - 240
Input current2.5
Power supply100
Output voltage20
Output current7.5
Power plug typeType N
Compatible power plug typesEU,UK
Software
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks,Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 70
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width82
Depth270
Height34
Weight382
Packaging data
Package width160
Package depth320
Package height80
Package weight1700
Packaging content
Cables includedUSB Type-C
AC adapter includedYes
ManualYes
Logistics data
Products per master (outer) case8
Master (outer) case width365
Master (outer) case length370
Master (outer) case height370
Harmonized System (HS) code84733020
Other features
ChipsetDisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Fri 11th Jul 2025 to Mon 14th Jul 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Thu 10th Jul 2025 to Sat 12th Jul 2025
View all Delivery Options & International Rates
Laptop Docking Station | Mac, Windows® & ChromeOS™ | 2x 4K 60Hz DP + HDMIThis triple-4K dock for Mac, Windows and Chrome USB-C laptops helps you take productivity to a whole new level. With three 4K video connections, 100W Power Delivery, and 5x USB 3.0 ports, the USB-C dock is perfect for your MacBook, Dell XPS, Chromebook or other USB-C laptop requiring additional ports.You can also connect the dock to your USB 3.0 laptop through a USB-A port, using a USB-C to A cable, such as the USB315AC1M(sold separately). Note: Power Delivery to charge your laptop is not available through USB-A, and only dual display is supported.Enhance ProductivityThe 4K USB-C docking station lets you create a three-monitor Ultra HD workstation. Connect:• 2x 4K DisplayPort (DisplayLink) at 4096 x 2160 resolution @ 60Hz / 3840 x 2160 @ 60Hz and• 1x 4K HDMI (DP Alt Mode) at 4096 x 2160 resolution @ 24Hz / 3840 x 2160 @ 30HzFor high-resolution applications, you can connect the dock to a 5K display at 60Hz, using the two DisplayPort ports.100W Power DeliveryUsing a single cable, the USB-C dock will power and charge power-hungry laptops, with up to 100W Power Delivery, and power your peripherals with its 150W power adapter.Powerful ConnectionsThis triple-monitor docking station lets you transform your laptop into a full-sized workstation. It gives you five USB 3.0 ports (1x USB Type-C and 4x USB Type-A incl. 1x Fast-Charge port), a Gigabit Ethernet port, headset jack, and separate 3.5 mm audio and microphone ports.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe TAA compliant DK30CH2DEPUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
USB Power DeliveryYes
USB Power Delivery up to100
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portYes
Headphone outputs2
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
Performance
Card reader integratedNo
Data transfer rate5
Maximum digital resolution5120 x 2880
Cable lock slotYes
Product colourBlack,Silver
On/off switchYes
UASP supportYes
Rubber feetYes
Housing materialPlastic
CertificationCE, FCC, TAA, REACH
Power
AC input voltage100 - 240
Input current2.5
Power supply100
Output voltage20
Output current7.5
Power plug typeType N
Compatible power plug typesEU,UK
Software
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 10.9 Mavericks,Mac OS X 13.0 Ventura
Other operating systems supportedChromeOS
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 70
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width82
Depth270
Height34
Weight382
Packaging data
Package width160
Package depth320
Package height80
Package weight1700
Packaging content
Cables includedUSB Type-C
AC adapter includedYes
ManualYes
Logistics data
Products per master (outer) case8
Master (outer) case width365
Master (outer) case length370
Master (outer) case height370
Harmonized System (HS) code84733020
Other features
ChipsetDisplayLink - DL-6950, Genesys Logic - GL3523, Genesys Logic - GL3523S, Texas Instruments - TPS65982, Parade Technologies - PS176
