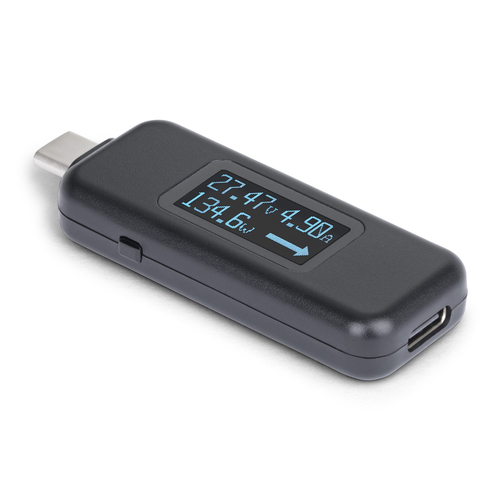

StarTech.com USB-C Power Tester, Digital Multimeter, Bi-Directional Voltage and Current Meter, Up to 240W PD EPR, Portable USB-C Cable and Port Power Meter Tester
Product Technical Specification
| Technical details | |
| Testing type | Amperage,Voltage,Wattage |
| DC output voltage test | 4.5V-50V |
| Output current | 6.5 |
| DC input voltage test | 4.5V-50V |
| Input current | 0.05 - 6.5 |
| Power connectors supported | USB Type-C |
| Built-in display | Yes |
| Backlight display | Yes |
| Backlight colour | Blue |
| Host interface | USB 3.2 USB Type C |
| Output interface | USB 3.2 USB Type C |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Maximum charging test | 240 |
| Compliance certificates | RoHS |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| Weight & dimensions | |
| Width | 57 |
| Depth | 23 |
| Height | 10 |
| Weight | 12 |
| Package width | 80 |
| Package depth | 84 |
| Package height | 15 |
| Package weight | 28 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Logistics data | |
| Master (outer) case width | 430 |
| Master (outer) case length | 180 |
| Master (outer) case height | 270 |
| Products per master (outer) case | 150 |
Delivery Options
Economy Delivery (UK)
Business Express
This bi-directional USB-C Power Tester is a practical tool to accurately monitor voltage, current, and wattage in any USB-C power scenario. It is ideal for technicians and IT pros for immediate, clear test readings anywhere. Use this tester to monitor and maintain reliable performance in power-sensitive setups.
Compact Form Factor
The USB-C Digital Power Tester is compact and suitable for testing mounted USB-C devices or hard-to-reach device ports. Its portable design makes it a lightweight and essential additional to any IT Pro's toolkit.
Streamline Power Diagnostics
This USB-C tester can quickly diagnose power issues with docking stations, hubs, chargers, and connected devices. The digital display provides real-time measurements and rotates 180 degrees with the press of a button, ensuring clear visibility when testing power flow from any direction. Verify if USB-C cables are transferring power efficiently and ensure compliance for devices that require high power output.
Versatile USB-C Compatibility
Supporting USB data pass-through up to 10Gbps and DP Alt Mode video, this Digital USB-C Multimeter accommodates a wide range of USB-C cables and devices. It measures power across a broad operating range of 4.5V to 50V and 50mA to 6.5A, while ensuring compatibility with USB Power Delivery 3.1 Extended Power Range (EPR) up to 240W. Note: Thunderbolt 3 devices are not supported.
The StarTech.com Advantage
| Technical details | |
| Testing type | Amperage,Voltage,Wattage |
| DC output voltage test | 4.5V-50V |
| Output current | 6.5 |
| DC input voltage test | 4.5V-50V |
| Input current | 0.05 - 6.5 |
| Power connectors supported | USB Type-C |
| Built-in display | Yes |
| Backlight display | Yes |
| Backlight colour | Blue |
| Host interface | USB 3.2 USB Type C |
| Output interface | USB 3.2 USB Type C |
| USB version | 3.2 Gen 2 (3.1 Gen 2) |
| Maximum charging test | 240 |
| Compliance certificates | RoHS |
| Product colour | Black |
| Housing material | Polycarbonate (PC) |
| Weight & dimensions | |
| Width | 57 |
| Depth | 23 |
| Height | 10 |
| Weight | 12 |
| Package width | 80 |
| Package depth | 84 |
| Package height | 15 |
| Package weight | 28 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 85 |
| Operating relative humidity (H-H) | 5 - 95 |
| Logistics data | |
| Master (outer) case width | 430 |
| Master (outer) case length | 180 |
| Master (outer) case height | 270 |
| Products per master (outer) case | 150 |
