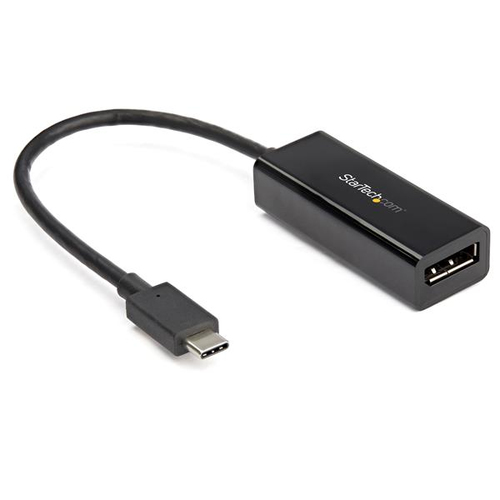

StarTech.com USB C to DisplayPort Adapter - 8K/5K/4K USB Type C to DP 1.4 Alt Mode Video Converter - HBR3/DSC/HDR - 8K 60Hz Thunderbolt 3 Compatible DisplayPort Monitor Display Adapter
Product Technical Specification
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male connector |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 |
| Refresh rate at maximum resolution | 30 |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160,7680 x 4320 |
| Audio output channels | 7.1 |
| Chipset | STM32F072 |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Operating relative humidity (H-H) | 30 - 60 |
| Weight & dimensions | |
| Width | 60 |
| Depth | 24 |
| Height | 15 |
| Weight | 34 |
| Package width | 200 |
| Package depth | 220 |
| Package weight | 44 |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 120 |
| Master (outer) case width | 500 |
| Master (outer) case length | 330 |
| Master (outer) case height | 220 |
| Harmonized System (HS) code | 84733020 |
Delivery Options
Economy Delivery (UK)
Business Express
This USB-C to DisplayPort adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort monitor or display, providing you with a convenient, high-performance solution. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible 8K Picture Quality
Supporting four times the resolution of 4K, this 8K DisplayPort 1.4 adapter delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
With cutting-edge picture quality, this adapter is ideal for:
Displaying crisp digital signage walls
Creating eye-catching visuals for photography and videography
Streaming high-resolution, life-like content
The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Resolution
Frequency
Support without DSC
Support with DSC
HDR10 without DSC
HDR10 with DSC
1080p (1920x1080)
60
P
P
P
P
120
P
P
P
P
240
P
P
P
P
4K (3840x2160)
60
P
P
P
P
120
P
P
O
P
240
O
P
O
P
8K (7680x4320)
30
P
P
O
P
60
O
P
O
P
120
O
O
O
O
Ideal for Travel
This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.
Hassle-Free Setup
To ensure easy operation, this USB C to DisplayPort adapter supports plug-and-play installation, removing the need for additional software or drivers.
CDP2DP14B is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
Your USB-C device must support DP Alt Mode to work with this adapter.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
This product will not work with the Samsung S8 smartphone. For hassle-free compatibility with the S8 we recommend using CDP2DP.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (32.4Gbps) adapter compatible w/ HDR/DisplayHDR, HBR3, Display Stream Compression (DSC), HDCP 2.2/1.4; 8K 60Hz (7680x4320), 5K 60Hz, 4K 120Hz & 1080p
- EXPERIENCE 8K: USB C to DisplayPort adapter was tested with 8K monitors, displays & compliance test hardware/software for optimal performance & color depth for high res imaging & content creators
- TESTED & VERIFIED: With USB-C DP Alt Mode & Thunderbolt 3 devices like Lenovo ThinkPad X1 Carbon/Extreme, Dell XPS, HP EliteBook/ZBook, TB3 MacBook Pro 13 & 16/Air, iPad Pro, Surface Laptop 3/Pro 7
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male connector |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 |
| Refresh rate at maximum resolution | 30 |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160,7680 x 4320 |
| Audio output channels | 7.1 |
| Chipset | STM32F072 |
| Certification | CE, FCC, REACH |
| Design | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Operating relative humidity (H-H) | 30 - 60 |
| Weight & dimensions | |
| Width | 60 |
| Depth | 24 |
| Height | 15 |
| Weight | 34 |
| Package width | 200 |
| Package depth | 220 |
| Package weight | 44 |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 120 |
| Master (outer) case width | 500 |
| Master (outer) case length | 330 |
| Master (outer) case height | 220 |
| Harmonized System (HS) code | 84733020 |
