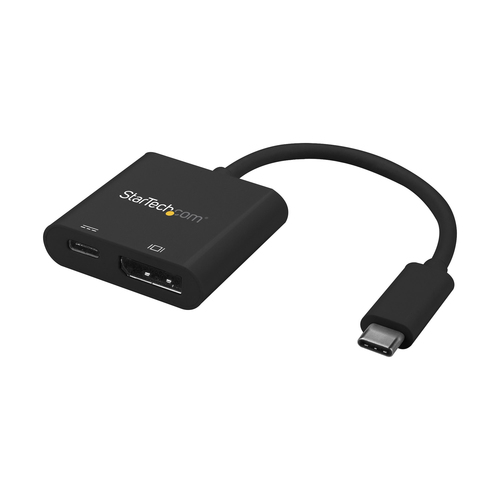

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 4K 60Hz HBR2 - USB Type-C to DP 1.2 Monitor Video Converter w/ Charging - 60W PD Pass-Through - Thunderbolt 3 Compatible

Manufacturer: Startech | Model: CDP2DPUCP | Product ID: 2252 | Warranty: 3 Years
£20.75 (inc. VAT)
1 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Performance
USB connector typeUSB Type-C
USB connector genderMale connector
USB connector form factorStraight
DVI outputNo
HDMI outputNo
DisplayPort outputYes
Number of displays supported1
HDCPYes
HDCP version1.4/2.2
DisplayPort version1.2
Maximum resolution3840 x 2160
Refresh rate at maximum resolution60
Supported graphics resolutions1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 768,1280 x 800,1360 x 768 (WXGA),1440 x 900 (WXGA+),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280,2560 x 1600 (WQXGA),3840 x 2160
Audio output channels7.1
ChipsetPERICOM - PI3DPX1203, VIA/VLI - VL100
Data transfer rate (max)21.6
CertificationFCC, CE, REACH
Design
Product colourBlack
Housing materialPlastic
Integrated USB cableYes
USB cable length0.1
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)0 - 90
Weight & dimensions
Width43
Depth187
Height12
Weight22
Package width145
Package depth170
Package height30
Package weight100
Technical details
Sustainability certificatesRoHS
Logistics data
Products per master (outer) case60
Master (outer) case width330
Master (outer) case length525
Master (outer) case height315
Harmonized System (HS) code84733020

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Use this USB Type-C to DisplayPort adapter to output DP video and charge your laptop using a single USB-C port

This USB-C to DisplayPort adapter lets you connect your laptop or MacBook with USB Type-C to a DisplayPort monitor. The video adapter features USB Power Delivery, which enables you to power your laptop while you're outputting video to a DisplayPort display.

USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook, Chromebook Pixel and the 2018 iPad Pro. It's also compatible with Thunderbolt 3 ports.

Charges your laptop

Unlike some video adapters that take up one of your laptop’s USB-C ports to output video, this video adapter features an additional USB-C charge port that supports USB Power Delivery up to 60 watts. This means you can charge your laptop and output video using a single port, by simply connecting the laptop’s power adapter to the adapter's USB-C port. It’s the perfect solution for laptops that have a limited number of USB-C ports.

Promotes portability

This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It’s the perfect accessory to carry with your MacBook or other USB-C computer, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.

Connects easily

This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.

Maintains astonishing picture quality

At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K monitor or television. The adapter lets you harness the video capabilities that are built into your USB Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display. 4K resolution gives you additional screen space to simplify your approach to detailed work such as editing video and viewing large spreadsheets.

Even if you're not running 4K, the adapter supports high-definition 1080p and lower resolutions, which gives you peace of mind in knowing that this adapter will work with any DP display you need to connect to.

The CDP2DPUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

- HIGH PERFORMANCE: USB-C to DisplayPort 1.2 (DP Alt Mode HBR2) (21.6Gbps) adapter to connect a single DP display supporting 4K 60Hz UHD (4096x2160/3840x2160)
- HDCP 2.2/1.4
- Thunderbolt 3 Compatible
Performance
USB connector typeUSB Type-C
USB connector genderMale connector
USB connector form factorStraight
DVI outputNo
HDMI outputNo
DisplayPort outputYes
Number of displays supported1
HDCPYes
HDCP version1.4/2.2
DisplayPort version1.2
Maximum resolution3840 x 2160
Refresh rate at maximum resolution60
Supported graphics resolutions1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 768,1280 x 800,1360 x 768 (WXGA),1440 x 900 (WXGA+),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280,2560 x 1600 (WQXGA),3840 x 2160
Audio output channels7.1
ChipsetPERICOM - PI3DPX1203, VIA/VLI - VL100
Data transfer rate (max)21.6
CertificationFCC, CE, REACH
Design
Product colourBlack
Housing materialPlastic
Integrated USB cableYes
USB cable length0.1
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)0 - 90
Weight & dimensions
Width43
Depth187
Height12
Weight22
Package width145
Package depth170
Package height30
Package weight100
Technical details
Sustainability certificatesRoHS
Logistics data
Products per master (outer) case60
Master (outer) case width330
Master (outer) case length525
Master (outer) case height315
Harmonized System (HS) code84733020
