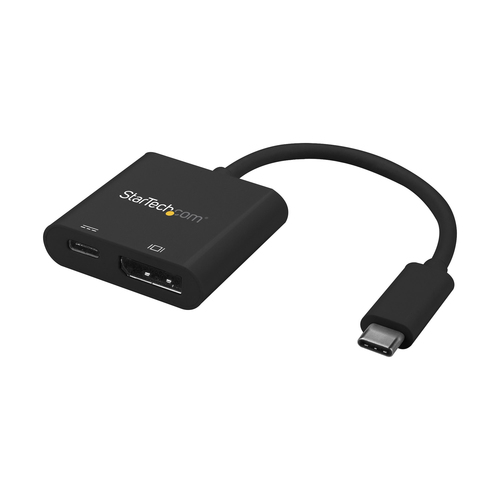

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 4K 60Hz HBR2 - USB Type-C to DP 1.2 Monitor Video Converter w/ Charging - 60W PD Pass-Through - Thunderbolt 3 Compatible
Product Technical Specification
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male connector |
| USB connector form factor | Straight |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.2 |
| Maximum resolution | 3840 x 2160 |
| Refresh rate at maximum resolution | 60 |
| Supported graphics resolutions | 1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 768,1280 x 800,1360 x 768 (WXGA),1440 x 900 (WXGA+),1600 x 900,1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1280,2560 x 1600 (WQXGA),3840 x 2160 |
| Audio output channels | 7.1 |
| Chipset | PERICOM - PI3DPX1203, VIA/VLI - VL100 |
| Data transfer rate (max) | 21.6 |
| Certification | FCC, CE, REACH |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
| USB cable length | 0.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 90 |
| Weight & dimensions | |
| Width | 43 |
| Depth | 187 |
| Height | 12 |
| Weight | 22 |
| Package width | 145 |
| Package depth | 170 |
| Package height | 30 |
| Package weight | 100 |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Products per master (outer) case | 60 |
| Master (outer) case width | 330 |
| Master (outer) case length | 525 |
| Master (outer) case height | 315 |
| Harmonized System (HS) code | 84733020 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
This USB-C to DisplayPort adapter lets you connect your laptop or MacBook with USB Type-C to a DisplayPort monitor. The video adapter features USB Power Delivery, which enables you to power your laptop while you're outputting video to a DisplayPort display.
USB Type-C is a universal connectivity standard that combines all of your essential functions into one dynamic port. This adapter works with USB-C devices that pass a DisplayPort video signal, such as the MacBook, Chromebook Pixel and the 2018 iPad Pro. It's also compatible with Thunderbolt 3 ports.
Charges your laptop
Unlike some video adapters that take up one of your laptop’s USB-C ports to output video, this video adapter features an additional USB-C charge port that supports USB Power Delivery up to 60 watts. This means you can charge your laptop and output video using a single port, by simply connecting the laptop’s power adapter to the adapter's USB-C port. It’s the perfect solution for laptops that have a limited number of USB-C ports.
Promotes portability
This USB Type-C video adapter maximizes portability with a lightweight, small-footprint design. It’s the perfect accessory to carry with your MacBook or other USB-C computer, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes this adapter perfect for BYOD (Bring Your Own Device) applications at the office.
Connects easily
This adapter lets you utilize the versatile USB Type-C port on your portable device. USB Type-C is a reversible connector, so no matter how you plug it in, the adapter will always connect. This saves you the hassle and embarrassment of struggling with your device when you're trying to deliver a presentation or sharing information.
Maintains astonishing picture quality
At four times the resolution of high-definition 1080p, you’ll be amazed at the picture quality of a 4K monitor or television. The adapter lets you harness the video capabilities that are built into your USB Type-C connection to deliver the astonishing quality of Ultra HD to your 4K display. 4K resolution gives you additional screen space to simplify your approach to detailed work such as editing video and viewing large spreadsheets.
Even if you're not running 4K, the adapter supports high-definition 1080p and lower resolutions, which gives you peace of mind in knowing that this adapter will work with any DP display you need to connect to.
The CDP2DPUCP is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.2 (DP Alt Mode HBR2) (21.6Gbps) adapter to connect a single DP display supporting 4K 60Hz UHD (4096x2160/3840x2160)
- HDCP 2.2/1.4
- Thunderbolt 3 Compatible
