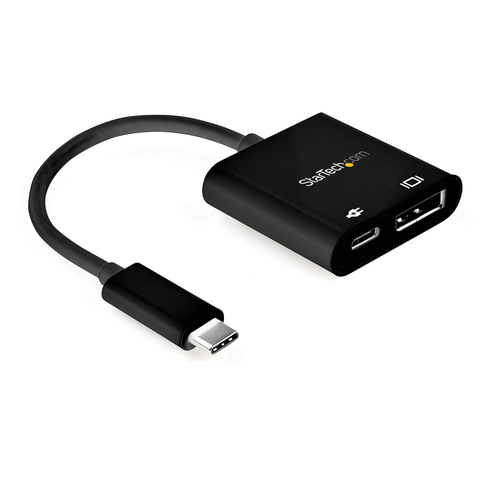

StarTech.com USB C to DisplayPort Adapter with Power Delivery - 8K 60Hz /4K 120Hz USB Type C to DP 1.4 Video Converter w/ 60W PD Pass-Through Charging - HBR3 - Thunderbolt 3 Compatible
Product Technical Specification
| Performance | |
| USB connector type | USB Type-C |
| USB connector gender | Male connector |
| DVI output | No |
| HDMI output | No |
| DisplayPort output | Yes |
| Number of displays supported | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDCP | Yes |
| HDCP version | 1.4/2.2 |
| DisplayPort version | 1.4 |
| Maximum resolution | 7680 x 4320 |
| Refresh rate at maximum resolution | 30 |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1440,2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160,7680 x 4320 |
| Audio output channels | 7.1 |
| Chipset | Parade PS8468, VIA VL102 |
| Design | |
| Product colour | Black |
| Housing material | Plastic |
| Integrated USB cable | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac compatibility | Yes |
| Mac operating systems supported | Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 45 |
| Storage temperature (T-T) | -10 - 70 |
| Operating relative humidity (H-H) | 10 - 85 |
| Weight & dimensions | |
| Width | 40 |
| Depth | 43 |
| Height | 11.45 |
| Weight | 22 |
| Package width | 124 |
| Package depth | 226 |
| Package height | 11 |
| Package weight | 26 |
| Technical details | |
| Sustainability compliance | Yes |
| Sustainability certificates | CE,RoHS |
| Logistics data | |
| Products per master (outer) case | 200 |
| Master (outer) case width | 328 |
| Master (outer) case length | 482 |
| Master (outer) case height | 210 |
| Harmonized System (HS) code | 84733020 |
Delivery Options
Economy Delivery (UK)
Business Express
This USB-C to DisplayPort adapter lets you connect your USB Type-C or Thunderbolt 3 device to a DisplayPort display, providing you with a convenient, high-performance solution. The adapter features USB Power Delivery so you can power and charge your devices while outputting Ultra HD video.
Power & Video with USB Power Delivery
This USB-C display adapter supports USB Power Delivery up to 60 watts and features an additional USB-C port so you can charge your laptop or tablet using its USB-C power adapter.
Incredible 8K Picture Quality
Delivering cutting-edge picture quality, this 8K DisplayPort 1.4 adapter supports UHD resolutions up to 7680x4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging.
The DisplayPort dongle is also backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Ideal for Travel
This lightweight display adapter is highly portable, with a small-footprint design. It's the perfect accessory for your MacBook, Microsoft Surface Book or other USB-C (or Thunderbolt 3) device, fitting perfectly into your carrying case.
CDP2DP14UCPB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
Your USB-C device must support DisplayPort Alternate Mode to work with this adapter.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: USB-C to DisplayPort 1.4 (DP Alt Mode HBR3) (32.4Gbps) adapter to connect a single DP display supporting 8K 60Hz (7680x4320) or 4K 120Hz UHD
- HDR/DisplayHDR
- DSC
