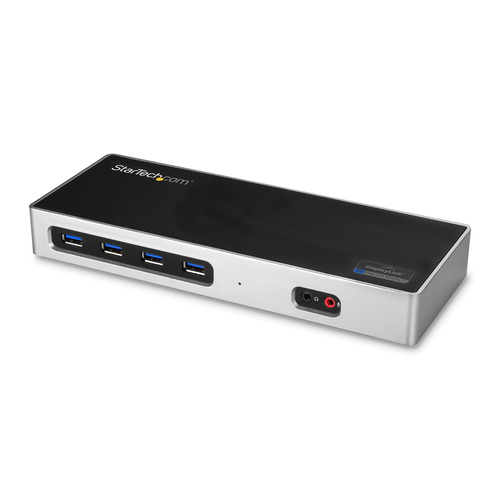

StarTech.com USB-C & USB-A Dock - Dual Monitor 4K 60Hz Dock DisplayPort + HDMI - Hybrid USB 3.0 Docking Station for USB-C or USB-A Laptops - 6x USB Type-A, GbE - USB 3.1 Gen 1 - Mac/Windows

Manufacturer: Startech | Model: DK30A2DH | Product ID: 6123 | Warranty: 3 Years
£146.71 (inc. VAT)
49 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Ports & interfaces
Connectivity technologyWired
Host interfaceUSB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity6
HDMI ports quantity2
DisplayPorts quantity2
Microphone inYes
Combo headphone/mic portNo
Headphone outputs1
Headphone connectivity3.5 mm
DC-in jackYes
Network
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Auto MDI/MDI-XYes
Full duplexYes
10G supportNo
Performance
Card reader integratedNo
Data transfer rate5
Maximum digital resolution4096 x 2160
Number of displays supported2
Product colourBlack,Silver
On/off switchYes
LED indicatorsPower
UASP supportYes
Housing materialAluminium,Plastic
Brand compatibilityAny brand
CertificationCE, FCC, REACH
Power
Power source typeAC
AC input voltage100 - 240
Input current1
Output voltage20
Output current2
Power consumption (typical)40
Power plug typeType N
Compatible power plug typesAU,EU,JP,UK,US
Software
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64
Mac compatibilityYes
Mac operating systems supportedMac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 13.0 Ventura
Operational conditions
Operating temperature (T-T)0 - 40
Storage temperature (T-T)-10 - 70
Operating relative humidity (H-H)10 - 90
Sustainability
Sustainability certificatesRoHS
Weight & dimensions
Width87
Depth226
Height28
Weight301
Packaging data
Package width130
Package depth318
Package height52
Package weight900
Packaging content
Cables includedUSB Type-A to USB Type-C,USB Type-C
AC adapter includedYes
Quick start guideYes
Logistics data
Products per master (outer) case10
Master (outer) case width325
Master (outer) case length325
Master (outer) case height305
Harmonized System (HS) code84733020
Other features
Cable length0.152
ChipsetDisplayLink - DL-6950, VIA/VLI - VL813
Number of microphone inputs1
USB data transfer rates12,480,5000

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Thu 24th Apr 2025 to Sun 27th Apr 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Wed 23rd Apr 2025 to Fri 25th Apr 2025
View all Delivery Options & International Rates
Laptop Docking Station | Mac & Windows® | DisplayPort & HDMI | 4K 60 HzThis dual-4K docking station offers wide flexibility in setting up your workstation, working with both USB-C and USB-A port laptops and supporting multiple combinations of Ultra HD 4K DisplayPort and HDMI monitors.Enhance Productivity with Dual-4K 60Hz VideoIdeal for highly detailed graphics applications, this dual-4K 60Hz docking station enhances your productivity by expanding the display capabilities of your laptop across two Ultra HD 4K monitors. The laptop docking station works with DisplayLink® to support high-resolution monitors, enabling two full 4K 60Hz displays from a single USB connection.With the dual-4K dock, connect:• 2x 4K DisplayPort displays (up to 4096 x 2160p @ 60Hz)• 2x 4K HDMI displays (up to 4096 x 2160p @ 60Hz)• 1x 4K DisplayPort + 4K HDMI displays (up to 4096 x 2160p @ 60Hz)Connects to USB-C and USB-A LaptopsThe USB 3.0 docking station supports USB-C and USB-A enabled Mac and Windows laptops. This means you can connect newer USB-C or Thunderbolt™ 3 laptops or extend the life of legacy USB 3.0 (Type-A) laptops.All the Connections You NeedThis USB-A & USB-C dock lets you transform your Mac or Windows laptop into a full workstation with six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, and separate 3.5 mm audio and microphone ports for multiple audio connections, all using a single cable.DK30A2DH is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
