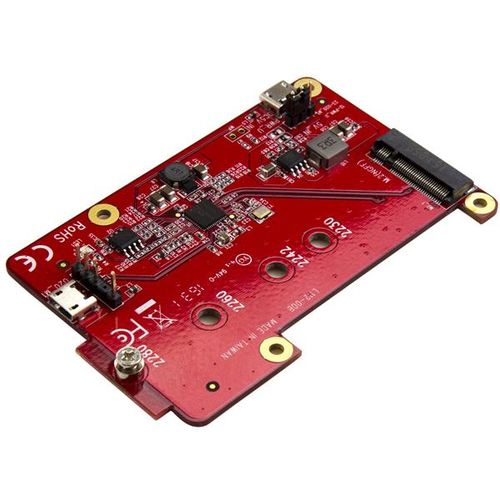

StarTech.com USB to M.2 SATA Converter for Raspberry Pi and Development Boards
Product Technical Specification
| Ports & interfaces | |
| Host interface | Micro-USB |
| Output interface | M.2 |
| Design | |
| Internal | Yes |
| Product colour | Red |
| Mean time between failures (MTBF) | 5839751 |
| Certification | CE, FCC |
| Features | |
| Chipset | Renesas - µPD720231A |
| Data transfer rate (max) | 6 |
| Power | |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 50 |
| Storage temperature (T-T) | -25 - 70 |
| Operating relative humidity (H-H) | 15 - 90 |
| Technical details | |
| Sustainability certificates | RoHS |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 56 |
| Depth | 88 |
| Height | 11 |
| Weight | 21.8 |
| Packaging data | |
| Cables included | USB |
| Quick installation guide | Yes |
| Package width | 142 |
| Package depth | 170 |
| Package height | 30 |
| Package weight | 110 |
| Package volume | 100 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
Delivery Options
Economy Delivery (UK)
Business Express
Add storage capacity to your development board
This convenient USB 2.0 to M.2 SATA converter lets you overcome data storage limitations of your development board by enabling you to connect an M.2 SATA drive through your board’s USB-A port.
A convenient integrated solution
The USB to M.2 SATA converter integrates seamlessly with your existing development board. It’s the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It enables you to utilize your M.2 SATA drives with your dev board, and take advantage of the small form factor of M.2 SATA which makes it ideal for applications with space limitations.
Easy to install
Compatible with M.2 SATA drives (2230, 2242, 2260, and 2280), the converter is easy to install and doesn’t require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2M21 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Note:
This converter works with M.2 SATA SSDs only. To see which type of M.2 drive you have, simply look at the number of notches (or keys) on the drive end that connects with the M.2 socket. SATA-based M.2 drives have two notches (an M key and a B key), while PCIe-based M.2 drives have just one notch (an M key).
Raspberry Pi is a trademark of the Raspberry Pi Foundation
