TP-Link 10-Port Gigabit Easy Smart Switch with 8-Port PoE+
Product Technical Specification
Management features | |
Switch type | Managed |
Switch layer | L2 |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 9 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Fiber ports quantity | 1 |
Fiber optic connector | SFP |
Power connector | DC-in jack |
Network | |
Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
10G support | No |
Port mirroring | Yes |
Broadcast storm control | Yes |
Rate limiting | Yes |
Data transmission | |
Switching capacity | 20 |
Forwarding rate | 14.88 |
MAC address table | 4000 |
Store-and-forward | Yes |
Jumbo frames support | Yes |
Jumbo frames | 16000 |
Security | |
IGMP snooping | Yes |
Loop protection | Yes |
Design | |
Rack mounting | No |
Product colour | Black |
LED indicators | Yes |
Power | |
Power supply included | Yes |
DC input voltage | 53.5 |
Input current | 2.43 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 8 |
Power over Ethernet (PoE) power per port | 30 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -40 - 70 |
Operating relative humidity (H-H) | 10 - 90 |
Storage relative humidity (H-H) | 5 - 95 |
Weight & dimensions | |
Width | 209 |
Depth | 126 |
Height | 26 |
Packaging data | |
Manual | Yes |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Delivery Options

Economy Delivery (UK)

Fast & Tracked by Courier (UK)

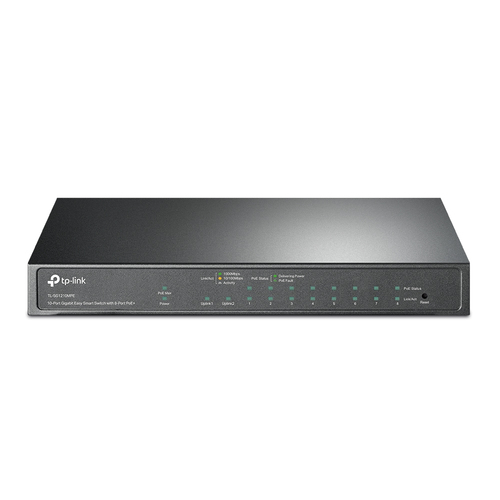

TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
System Self-Healing with PoE Auto Recovery
The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.
Intelligent Power Management
When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.
