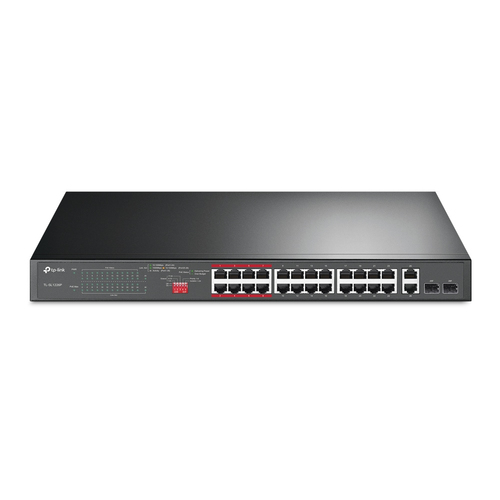

TP-Link 24-Port 10/100Mbps + 2-Port Gigabit Unmanaged PoE+ Switch
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 26 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Fast Ethernet (copper) ports quantity | 24 |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Combo SFP ports quantity | 2 |
| Network | |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 8.8 |
| Forwarding rate | 6.54 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 |
| Design | |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Grey |
| LED indicators | Yes |
| Number of fans | 2 |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source | AC |
| Power supply included | Yes |
| AC input voltage | 100 - 240 |
| AC input frequency | 50 - 60 |
| Power consumption (max) | 281 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 24 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 250 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 1002.54 |
| Weight & dimensions | |
| Width | 440 |
| Depth | 180 |
| Height | 44 |
| Packaging data | |
| Quick start guide | Yes |
| Rack mount kit | Yes |
| Package width | 528 |
| Package depth | 250 |
| Package height | 80 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
Plug and Play, with PoE Transmission for Surveillance up to 250 m
- 250 W PoE Budget
- Transmission Distance up to 250 m
- One-Click Priority Mode
- One-Click Traffic Separation
- Ultra HD Video
- Plug and Play
Dedicated 24-Port PoE+ Switch for Wide Range of Applications with 250 W PoE Budget
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× PoE ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.
Dedicated Design for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m — perfect for IP Camera deployment in large areas.
Dedicated Design for IP Surveillance — Higher Performance and Security
Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.
One-Click Traffic Separation for Ports 1-24
With one click, Isolation Mode easily divides traffic for ports 1–24 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.
Smooth HD Video Monitoring
2× gigabit RJ45 ports and 2× combo gigabit SFP ports ensure smooth streaming even when 24× HD IP cameras work simultaneously.
Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 250 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.
Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.
