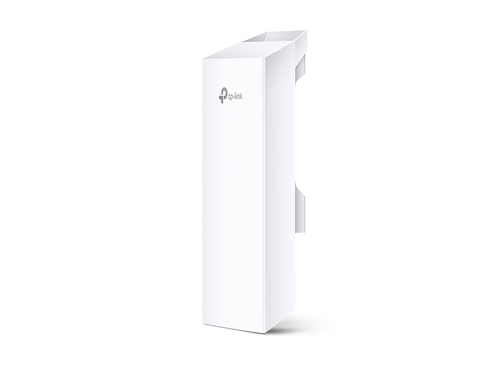

TP-Link 2.4GHz 300Mbps 9dBi Outdoor CPE 300 Mbit/s White Power over Ethernet (PoE)

Manufacturer: TP-Link | Model: CPE210 | Product ID: 2895
£46.17 (inc. VAT)
4 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Features
2.4 GHzYes
5 GHzNo
Maximum data transfer rate300
Maximum data transfer rate (2.4 GHz)300
Frequency band2.4 - 2.483
Bandwidth2.4
Networking standardsIEEE 802.11b,IEEE 802.11g,IEEE 802.11n
MIMOYes
MIMO typeMulti User MIMO
Maximum outdoor range5000
Receiver sensitivity802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security
Security algorithms64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
MAC address filteringYes
Protocols
Management protocolsTDMA
Management features
Web-based managementYes
Management platformPharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Power
Power over Ethernet (PoE)Yes
AC input voltage100 - 240
Input current0.8
AC input frequency50/60
Output voltage24
Output current1
Power consumption (max)10.5
Design
PlacementWall
Product colourWhite
International Protection (IP) codeIPX5
Reset buttonYes
LED indicatorsYes
Certification- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Antenna
Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)9
Performance
Built-in processorYes
Processor modelQualcomm Atheros
Processor frequency560
Flash memory8
Internal memory64
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Operational conditions
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-30 - 70
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 95
Weight & dimensions
Width224
Depth79
Height60
Packaging data
Cables includedAC
Mounting kitYes

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Thu 24th Apr 2025 to Sun 27th Apr 2025
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Wed 23rd Apr 2025 to Fri 25th Apr 2025
View all Delivery Options & International Rates
TP-LINK’s 2.4GHz 300Mbps 9dBi Outdoor CPE, the CPE210 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE210 an ideal choice for both business and home users.

Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE210 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -40℃ (-40℉) to +70 ℃ (158℉).

Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna
Dedicated metal reflector ensures higher gain
and lower noise interference

5km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission over 5km+, tested in the field.

TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE210 uses MAXtream TDMA Technology.

Pharos Control – Centralized Management System
CPE210 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC - Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.

PharOS
User-friendly web-based management system allows professionals to do more specific configurations.
Features
2.4 GHzYes
5 GHzNo
Maximum data transfer rate300
Maximum data transfer rate (2.4 GHz)300
Frequency band2.4 - 2.483
Bandwidth2.4
Networking standardsIEEE 802.11b,IEEE 802.11g,IEEE 802.11n
MIMOYes
MIMO typeMulti User MIMO
Maximum outdoor range5000
Receiver sensitivity802.11b: 11M: -95dBm, 5.5M: -96dBm, 2M: -96dBm, 1M: -96dBm -802.11g: 54M: -79dBm, 48M: -80dBm, 36M: -84dBm, 6-24M: -88dBm 802.11n: MCS15: -76dBm, MCS14: -78dBm, MCS13: -80dBm, MCS12: -84dBm, MCS11: -87dBm, MCS10: -91dBm, MCS9: -93dBm, MCS8: -96dBm, MCS7: -76dBm, MCS6: -78dBm, MCS5: -80dBm, MCS4: -84dBm, MCS3: -87dBm, MCS2: -91dBm, MCS1: -93dBm, MCS0: -96dBm
Security
Security algorithms64-bit WEP,128-bit WEP,152-bit WEP,SSID,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
MAC address filteringYes
Protocols
Management protocolsTDMA
Management features
Web-based managementYes
Management platformPharos Control
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Power
Power over Ethernet (PoE)Yes
AC input voltage100 - 240
Input current0.8
AC input frequency50/60
Output voltage24
Output current1
Power consumption (max)10.5
Design
PlacementWall
Product colourWhite
International Protection (IP) codeIPX5
Reset buttonYes
LED indicatorsYes
Certification- FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark - RoHS, IPX5
Antenna
Antenna typeInternal
Antenna featuresIntegrated antenna
Antennas quantity1
Antenna gain level (max)9
Performance
Built-in processorYes
Processor modelQualcomm Atheros
Processor frequency560
Flash memory8
Internal memory64
Compatible operating systemsMicrosoft Windows 98SE, NT, 2000, XP, Vista or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Operational conditions
Operating relative humidity (H-H)10 - 90
Operating temperature (T-T)-30 - 70
Storage temperature (T-T)-40 - 70
Storage relative humidity (H-H)5 - 95
Weight & dimensions
Width224
Depth79
Height60
Packaging data
Cables includedAC
Mounting kitYes
