TP-Link 5-Port 10G Desktop Switch
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 100 |
| Forwarding rate | 74.4 |
| MAC address table | 32000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Certification | CE, FCC ,RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 2 |
| Input voltage | 12 |
| Power consumption (max) | 21.4 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 226 |
| Depth | 131 |
| Height | 35 |
| Packaging data | |
| Cables included | AC |
| Manual | Yes |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)

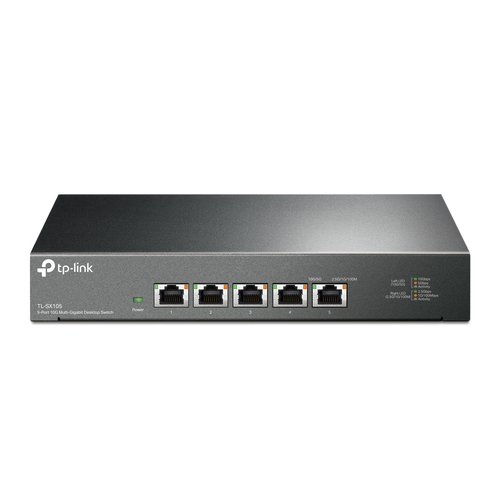

5-Port 10G Desktop Switch
Unlock the Highest Performance of
10G/Multi-Gig Bandwidth and Devices
As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
LAN Party
Never host a laggy LAN party again. Experience the unparalleled speed and let the game run smoothly.
Home Entertainment
Enjoy a fun game time and 8K videos with friends and family, without having to ever worry about buffering again.
Small and Home Offices
Work at office or home with lightning-fast connections to workstations and WiFi 6 access points.
Instant Transfer for Workstations
Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Ideal for Home Entertainment
Enjoy Buffer-Free 8K Videos
Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.
More 10GE LAN Ports for WiFi 6 Networking
Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Silent Operation with
Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the 10G switch on a desktop or mount it to a wall.
Same Cables, New Speed
Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| 10G Ethernet (copper) ports quantity | 5 |
| Network | |
| Networking standards | IEEE 802.1p,IEEE 802.3ab,IEEE 802.3an,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3x |
| 10G support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| Switching capacity | 100 |
| Forwarding rate | 74.4 |
| MAC address table | 32000 |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| Packet buffer memory | 16 |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Yes |
| Wall mountable | Yes |
| Certification | CE, FCC ,RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 2 |
| Input voltage | 12 |
| Power consumption (max) | 21.4 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 226 |
| Depth | 131 |
| Height | 35 |
| Packaging data | |
| Cables included | AC |
| Manual | Yes |
| Package type | Box |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
