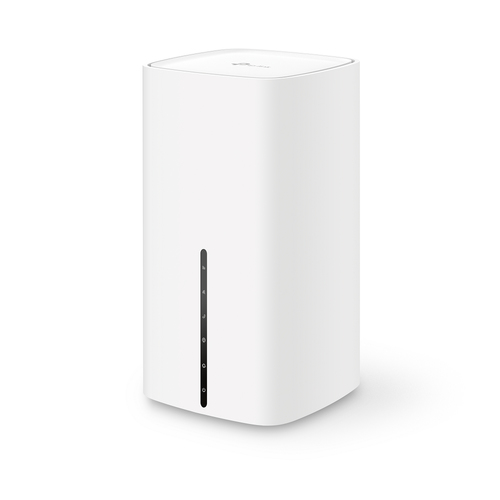

TP-Link 5G AX3000 Wi-Fi 6 Telephony Router
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 2402 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile network | |
| Mobile network generation | 5G |
| 3G standards | DC-HSDPA,HSDPA,HSPA+,HSUPA,WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| DC-in jack | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Security | |
| Parental control | Yes |
| Design | |
| Product colour | White |
| LED indicators | LAN,LTE,Status |
| Product type | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | Internal & external |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 |
| Processor cores | 2 |
| Certification | CE, RoHS |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Output voltage | 12 |
| Output current | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 99 |
| Depth | 99 |
| Height | 192 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
5G AX3000 Wi-Fi6 Telephony Router
Unrivaled Speed with 5G, Revolutionary Experience
5G greatly boosts the download speed up to 3.4 Gbps–22x faster than 4G LTE. It brings fast responsive network connections to tomorrow’s mobile devices, with only 1 ms latency.
Plug and Play, Enjoy 5G Network Everywhere
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. NX510v ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!
AX3000 – Powerful Wi-Fi 6
Armed with WiFi 6 technology, NX510v is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh WiFi to enjoy the future network that loads faster and connects more.
Enjoy WiFi and Phone Calls Simultaneously
NX510v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoLTE and CSFB. Simply enjoy a professional and high-quality voice call as you like.
Create Smart Mesh WiFi with Great Flexibility
Working with other EasyMesh-compatible devices, NX510v creates a unified mesh WiFi network for seamless whole home coverage. No more searching for a stable connection.
Engineered for More Devices
NX510v is aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.
Available WAN Connection
The WAN/LAN port enables NX510v to work as a traditional wireless router which is compatible with cable, fiber, and DSL modems. And when it's set as a wireless router, its 5G/4G connection works as a backup to provide a sustained and reliable internet connection for you.
Easy Setup and Use
You can set up your device in minutes, whether you prefer the powerful Aginet app or the intuitive web interface. The Aginet app allows you to manage your network from a smartphone or tablet.
Aginet Solution:End-to-End Management System for ISPs
The Aginet Solution offers ISPs powerful and flexible platforms to manage multiple devices for connected homes, such as dynamic service provisioning, remote firmware upgrading, and troubleshooting.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 3000 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 2402 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v |
| Port forwarding | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile network | |
| Mobile network generation | 5G |
| 3G standards | DC-HSDPA,HSDPA,HSPA+,HSUPA,WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| USB port | No |
| DC-in jack | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Security | |
| Parental control | Yes |
| Design | |
| Product colour | White |
| LED indicators | LAN,LTE,Status |
| Product type | Tabletop router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Antenna | |
| Antenna design | Internal & external |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1000 |
| Processor cores | 2 |
| Certification | CE, RoHS |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| Output voltage | 12 |
| Output current | 2 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 99 |
| Depth | 99 |
| Height | 192 |
