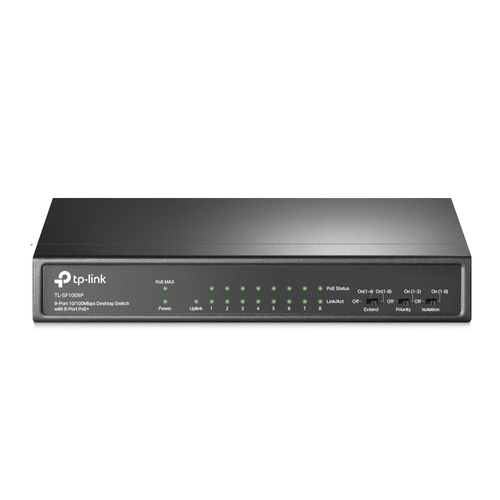

TP-Link 9-Port 10/100Mbps Desktop Switch with 8-Port PoE+
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Data transmission | |
| Switching capacity | 1.6 |
| MAC address table | 2000 |
| Store-and-forward | Yes |
| Design | |
| Rack mounting | No |
| Product colour | Black |
| LED indicators | Activity,Link,PoE,Power |
| Certification | FCC, CE, RoHS |
| Performance | |
| Fanless | Yes |
| Power | |
| Power source | DC |
| Power supply included | Yes |
| Input current | 1.31 |
| Input voltage | 53.5 |
| Power consumption (max) | 77.08 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 65 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Heat dissipation | 262.84 |
| Weight & dimensions | |
| Width | 171 |
| Depth | 98 |
| Height | 27 |
| Packaging data | |
| Quick start guide | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
