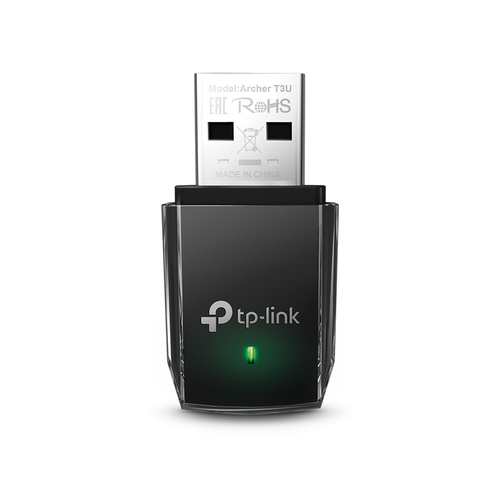

TP-Link AC1300 Mini Wireless MU-MIMO USB Adapter WLAN 1267 Mbit/s
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | WLAN |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Maximum data transfer rate | 1267 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,400,867 |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Design | |
| Component for | PC/Notebook |
| Product colour | Black |
| Internal | No |
| Antenna | Yes |
| Antenna design | Internal |
| Transmitting power (CE) | 23 |
| Transmitting power (FCC) | 23 |
| LED indicators | Status |
| Receiver sensitivity | 5GHz: 11a 6Mbps: -91dBm 11a 54Mbps: -76dBm 11n HT20:-71dBm 11n HT40:-70dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -62dBm 2.4GHz: 11b 11Mbps: -86dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -70dBm |
| Certification | CE, FCC |
| Power | |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 40.5 |
| Depth | 19.72 |
| Height | 10.29 |
| Packaging content | |
| Quick installation guide | Yes |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Big performance
AC1300 Mini Wireless MU-MIMO USB Adapter
High-Speed Dual Band Adapter for Better Connections
Wireless AC technology means Archer T3U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed WiFi (up to 867 Mbps over the 5 GHz band and 400 Mbps over the 2.4 GHz band) means Archer T3U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
Miniature Design - Take With You On the Go
Archer T3U has a smart design that is tinier than most USB adapters. Not only can it be inserted into any USB port but is also easy to carry.
USB 3.0 for Superior Transfer Speeds
Experience blazing-fast data transfers of up to 4.8 Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T3U ideal for HD streaming, online gaming and large file downloads.
Boosted Throughput with MU-MIMO
With MU-MIMO technology, Archer T3U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.
Easy Setup
A friendly user interface comes on a CD for simple installation.
Advanced Security
WPA/WPA2 encryption standards ensure your wireless connections safety.
Operating System
Supports Windows, Mac OS
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | WLAN |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Network | |
| Maximum data transfer rate | 1267 |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| WLAN data transfer rates supported | 11,54,300,400,867 |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Design | |
| Component for | PC/Notebook |
| Product colour | Black |
| Internal | No |
| Antenna | Yes |
| Antenna design | Internal |
| Transmitting power (CE) | 23 |
| Transmitting power (FCC) | 23 |
| LED indicators | Status |
| Receiver sensitivity | 5GHz: 11a 6Mbps: -91dBm 11a 54Mbps: -76dBm 11n HT20:-71dBm 11n HT40:-70dBm 11ac HT20: -68dBm 11ac HT40: -64dBm 11ac HT80: -62dBm 2.4GHz: 11b 11Mbps: -86dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -70dBm |
| Certification | CE, FCC |
| Power | |
| USB powered | Yes |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1,Windows XP |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.9 Mavericks |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width | 40.5 |
| Depth | 19.72 |
| Height | 10.29 |
| Packaging content | |
| Quick installation guide | Yes |
