TP-Link Archer AX3000 Dual-Band Wi-Fi 6 Air Router
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2976 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 2402 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB charging port | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
| Guest access | Yes |
| Protocols | |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | White |
| Wall mountable | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Manual | Yes |
| Antenna | |
| Antenna design | Internal |
| Features | |
| Certification | FCC, CE, RoHS |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 148 |
| Depth | 10.8 |
| Height | 210 |
| Packaging data | |
| Package type | Box |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Extraordinary Performance
AX3000 Wi-Fi 6 Air Router

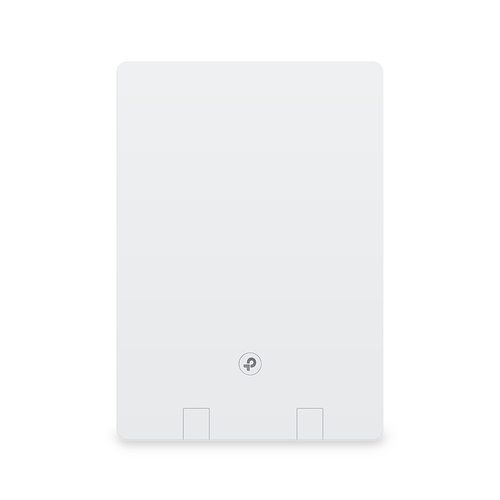

Ultra-Thin and Minimalist Design
Archer Air R5 has a compact size of 210×148×10.8mm and is even thinner than a wall outlet.
The pure white shell, minimalist lines and rounded corners form an elegant appearance and make Archer Air R5 better integrated with modern home interiors.
The LED and WPS 2-in-1 button on the front and the Type-C power port on the bottom further simplify Archer Air R5’s look.
Flexible Installation, Ultra Convenience
Archer Air R5 is designed to easily mount onto walls and offers multiple installation methods. With two 3M adhesives on its back and a plastic bracket accessory, you can paste or mount it on a wall. Its freer placement also saves electrical socket space.
Live in the Fast Lane with WiFi 6
Armed with AX3000 WiFi 6, Air R5 is built to deliver a huge boost in speed, capacity, and coverage.
Smart Antennas for All-Round Coverage
Archer Air R5’s built-in smart antennas use intelligent algorithms to auto-detect your devices’ locations and switch to the optimal antenna arrays, ensuring all-round stable signals even in duplex houses.
Boosted WiFi Signals Throughout Your Home
Armed with 4× powerful FEM and built-in smart antennas, Archer Air R5 boosts WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially in hard-to-reach areas.
Flexibly Create Whole Home Mesh WiFi
Archer Air R5 is EasyMesh-compatible. If you have any dead zones at home, simply add another EasyMesh router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection. For a better network experience, we recommend combining with Archer Air E5.
WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house
Smart Roaming
Uninterrupted streaming when moving around your home
One WiFi Name
No more switching WiFi network names
TP-Link HomeShield:
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.
Home Network Scanner
Real-time network scanner to detect potential threats and security issues.
Parental Controls
Manage time online and block inappropritate content keeping your family safe online.
Quality of Service
Assign your favorite devices to have the fastest connections for top performance.
VPN Server: More Granular VPN Function Usage
Allow devices in your home network to access remote VPN servers without needing to install VPN software on every device. Archer Air R5 can run both the VPN and ordinary internet connections at the same time, delivering security and flexibility.
Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer Air R5 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.
Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.
New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.
Easy Firmware Upgrade
Tired of upgrading firmware manually? OTA updates simplify firmware upgrades with a click in the management panel. To keep your security and functions always up to date, just turn on the auto schedule.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 2976 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 2402 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Yes |
| USB charging port | Yes |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | WPA,WPA-PSK,WPA2,WPA2-PSK,WPA3 |
| Guest access | Yes |
| Protocols | |
| DHCP server | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | White |
| Wall mountable | Yes |
| Product type | Tabletop router |
| Packaging content | |
| Manual | Yes |
| Antenna | |
| Antenna design | Internal |
| Features | |
| Certification | FCC, CE, RoHS |
| Power | |
| Power source type | USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 148 |
| Depth | 10.8 |
| Height | 210 |
| Packaging data | |
| Package type | Box |
