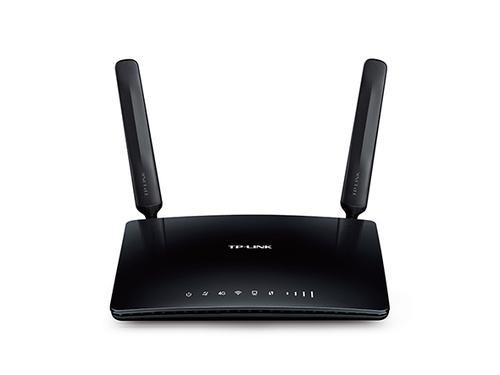

TP-Link Archer MR200 wireless router Fast Ethernet Dual-band (2.4 GHz / 5 GHz) 3G 4G Black
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 433 |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 |
| WLAN data transfer rate (second band) | 433 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
| Mobile network | |
| 3G | Yes |
| Mobile network generation | 4G |
| 4G | Yes |
| 2G standards | EDGE,GPRS,GSM |
| 3G standards | DC-HSPA+,HSPA,HSPA+,UMTS |
| 4G standard | LTE |
| GSM bands supported | 850,900,1800,1900 |
| UMTS bands supported | 900,2100 |
| 4G bands supported | 800,900,1800,2100,2600 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Data link protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 5 |
| Detachable antenna(s) | Yes |
| Features | |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source type | AC |
| Output voltage | 12 |
| Output current | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 202 |
| Depth | 141 |
| Height | 33.6 |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Micro to standard SIM card adapter | Yes |
| Nano to standard SIM card adapter | Yes |
| Quick start guide | Yes |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Take full advantage of your cutting-edge 4G LTE network with the Archer MR200, which can achieve download speeds of up to 150Mbps. The Archer MR200 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won't freeze up.
Great Coverage and Dual Band Wi-Fi
The 4G LTE router creates a simultaneous dual band Wi-Fi network that can deliver data at speeds of up to 733Mbps. The two distinct wireless networks, utilizing the 2.4GHz and 5GHz bands, provide optimized performance and minimize signal interference. The incorporation of advanced antennas and the latest wireless technology allows you to enjoy stable connections and incredible coverage.
No Configuration Required
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do insert a SIM card and turn on the Archer MR200. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.
Wi-Fi Where You Need It
The Archer MR200 offers unmatched convenience and versatility. The ability to quickly establish powerful wireless networks can be tremendously important. The Archer MR200 is the perfect solution whether you're at home or working in a remote location. Just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the Archer MR200 has you covered.
Available WAN Connection
With the inclusion of the WAN/LAN port, the Archer MR200 can also support a wide variety of connection types, including cable, fiber, and DSL modems.
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | No |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate (max) | 433 |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (first band) | 300 |
| WLAN data transfer rate (second band) | 433 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| VPN support | PPTP, L2TP, IPSec |
| Receiver sensitivity | 5GHz: 11a 54M: -74dBm 11ac HT20: -67dBm 11ac HT40: -64dBm 11ac HT80 : -60dBm 11n HT20: -71dBm 11n HT40: -70dBm 2.4G: 11g 54M: -76dBm 11n HT20: -73dBm 11n HT40: -67dBm |
| Mobile network | |
| 3G | Yes |
| Mobile network generation | 4G |
| 4G | Yes |
| 2G standards | EDGE,GPRS,GSM |
| 3G standards | DC-HSPA+,HSPA,HSPA+,UMTS |
| 4G standard | LTE |
| GSM bands supported | 850,900,1800,1900 |
| UMTS bands supported | 900,2100 |
| 4G bands supported | 800,900,1800,2100,2600 |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Firewall | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Data link protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 5 |
| Detachable antenna(s) | Yes |
| Features | |
| Certification | CE, FCC, RoHS |
| Power | |
| Power source type | AC |
| Output voltage | 12 |
| Output current | 1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 202 |
| Depth | 141 |
| Height | 33.6 |
| Packaging data | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Micro to standard SIM card adapter | Yes |
| Nano to standard SIM card adapter | Yes |
| Quick start guide | Yes |
