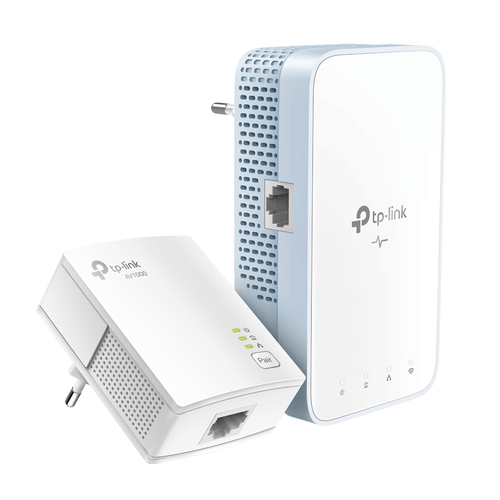

TP-Link AV1000 Gigabit Powerline ac Wi-Fi Kit
Product Technical Specification
| Performance | |
| Maximum data transfer rate | 1000 |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rates supported | 300,433 |
| Networking standards | IEEE 1901,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | WEP,WPA-PSK,WPA2-PSK |
| Maximum operating distance | 300 |
| Encryption button | Yes |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 6.5 |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN,PLC,Power,Wi-Fi |
| Product colour | White |
| Certification | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 69.5 |
| Depth | 35 |
| Height | 124.1 |
| Packaging data | |
| Package width | 230 |
| Package depth | 190 |
| Package height | 100 |
| Package weight | 560 |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
AV1000 Gigabit Powerline ac Wi-Fi Kit
Extend Wired and Wireless Network Using Electrical System
TL-WPA7517 KIT transforms your home’s existing electrical circuit into a Gigabit network, and brings wired and wireless network to anywhere there is a power outlet.
- > No need for drilling or wire installation
- > Network passes through walls and floors
- > Expand coverage by adding more extenders
- > Powerline adapters must be deployed in sets of two or more and be connected to the same electrical circuit
AV1000 Speeds and 300 Meters Range
Using advanced HomePlug AV2 technology, TL-WPA7517 KIT ensures stable and high-speed Wi-Fi and wired connection, providing data transmissions of up to 1000 Mbps* over the electrical wiring for ranges up to 300 meters. Stream in HD, game online and download large files without interruption thanks to reliable powerline links.
AC750 Wi-Fi for an Advanced Online Experience
With the 802.11ac Wi-Fi technology, the TL-WPA7517 operates a dual band Wi-Fi network (simultaneous 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz) with more bandwidth and less interference, maximizing the performance of your powerline network.
One Tap for a Unified Network
One-Touch Wi-Fi Configuration
Instantly copies your network name and password from your router for easy setup.
Gigabit Ethernet for Fast Wired Connections
One Gigabit Ethernet port provides reliable high-speed wired connection for a bandwidth intensive device, such as game consoles, smart TVs, STB and more, or connects multiple devices by adding a switch. Two Ethernet cables are included in the box.
Powerline Management on Your Smartphone
Manage your powerline Wi-Fi through tpPLC app from your smartphone (Android, iOS), or download new tpPLC Utility on PCs to manage the powerline network.
- View real-time powerline speed
- LED control (also controlled by LED On/Off button)
- Guest network
| Performance | |
| Maximum data transfer rate | 1000 |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN (RJ-45) ports | 2 |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rates supported | 300,433 |
| Networking standards | IEEE 1901,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| Power plug | Type E |
| Built-in power socket | No |
| PowerLine standard | HomePlug AV2 |
| Modulation | OFDM |
| Security algorithms | WEP,WPA-PSK,WPA2-PSK |
| Maximum operating distance | 300 |
| Encryption button | Yes |
| Plug and Play | Yes |
| Power | |
| Power consumption (typical) | 6.5 |
| Design | |
| Antenna type | Internal |
| LED indicators | LAN,PLC,Power,Wi-Fi |
| Product colour | White |
| Certification | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 7,Windows 8,Windows 8.1 |
| Linux operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 10 - 90 |
| Weight & dimensions | |
| Width | 69.5 |
| Depth | 35 |
| Height | 124.1 |
| Packaging data | |
| Package width | 230 |
| Package depth | 190 |
| Package height | 100 |
| Package weight | 560 |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | LAN (RJ-45) |
| Logistics data | |
| Harmonized System (HS) code | 85171800 |
