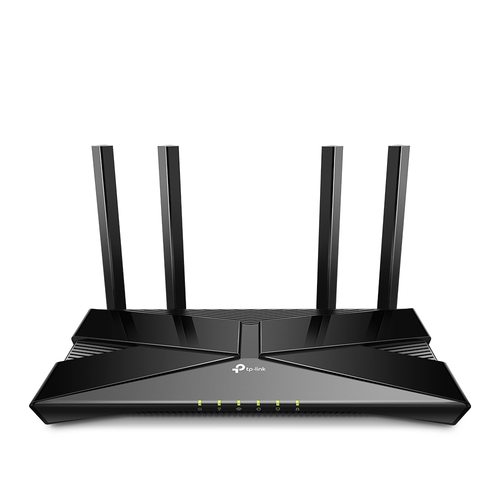

TP-Link AX1800 Dual Band Wi-Fi 6 Router
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 1800 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 1201 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11k,IEEE 802.11n,IEEE 802.11r,IEEE 802.11v,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless radio | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, OpenVPN, IPSec |
| Mobile network | |
| 3G | No |
| 4G | No |
| 5G | No |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
| Management features | |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wireless statistics | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security | |
| Security algorithms | SSID,WPA,WPA2,WPA3 |
| Firewall | Yes |
| Firewall security | SPI |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| Schedule access | Yes |
| DoS attack prevention | Yes |
| DMZ support | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Design | |
| Product colour | Black |
| Indication light | Yes |
| On/off switch | Yes |
| Built-in display | No |
| Product type | Tabletop router |
| Certificates | |
| Compliance certificates | CE |
| Certification | FCC |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Antenna included | Yes |
| Quick installation guide | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Antenna | |
| Antenna design | External |
| Antenna gain level (max) | 5 |
| Antennas quantity | 4 |
| Transmit power | CE: <20dBm (2.4 GHz), <23dBm (5.17 GHz–5.71 GHz) FCC:<30dBm (2.4 GHz & 5.15 GHz–5.825 GHz) |
| Power | |
| Power source type | DC |
| External power adapter | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| System requirements | |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 260.2 |
| Depth | 135 |
| Height | 41.6 |
| Packaging data | |
| Number of products included | 1 |
| Other features | |
| Input current | 1 |
| Input voltage | 12 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Era of WiFi
AX1800 Dual Band Wi-Fi 6 Router
The Next Generation of WiFi is Upon Us
Wi-Fi 6 (802.11ax) could turn out to be the most significant advancement in WiFi development, delivering a huge boost in speed and total capacity. Mainstream adoption of Wi-Fi 6 is inching ever closer with more and more AX clients available. It's the right time to upgrade your router to the newest generation of WiFi !
Dual-Band Wi-Fi 6 Up to 1.8 Gbps
Every application feels more fluid with drastically improved Wi-Fi speeds. Both 2.4 GHz band and 5 GHz band get upgraded to the latest generation—perfect for 4K streaming, online gaming, and fast downloading.
More Connections at High Speed
Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your WiFi by allowing multiple clients to share one band at the same time, cutting latency and jitter.
OFDMA
OFDMA separates a single spectrum into multiple units and enables different devices to share one transmission stream, increasing efficiency and reducing latency.
Extensive WiFi Coverage
Beamforming technology, and four high-gain antennas combine to adapt WiFi coverage to perfectly fit home and concentrate signal strength towards every device.
Create Smart Mesh WiFi with Great Flexibility
EX220 is compatible with EasyMesh. It can form a unified mesh WiFi network, seamlessly covering the entire home together with added-on EX220 or other TP-Link EasyMesh models.
WPA3—The Next Level of Cybersecurity
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home WiFi.
Gigabit Broadband Internet Access
The Gigabit Ethernet ports allow you to take full advantage of your broadband speed up to 1 Gbps. Plug your PCs, smart TVs, and game consoles into one of the four Gigabit Ethernet LAN ports for fast and reliable wired connections.
Easy Setup and Use
Whether you prefer the intuitive Aginet app or the powerful web interface, you can set up your device in minutes. The Agient app allows you to manage network settings from your smart phone or tablet.
Support TR-069 Remote Management
ISPs can remotely configure and manage the devices via ACS (Auto-Configuration Server). High-level operations support TR-181, TR-111, and TR-143 protocols.
Aginet Solution:
End-to-End Management System for ISPs
Aginet Solutions offer ISPs powerful and flexible platforms to manage multiple devices for connected home, such as dynamic service provisioning, zero-touch firmware upgrading and remote troubleshooting and mesh WiFi diagnostics.
