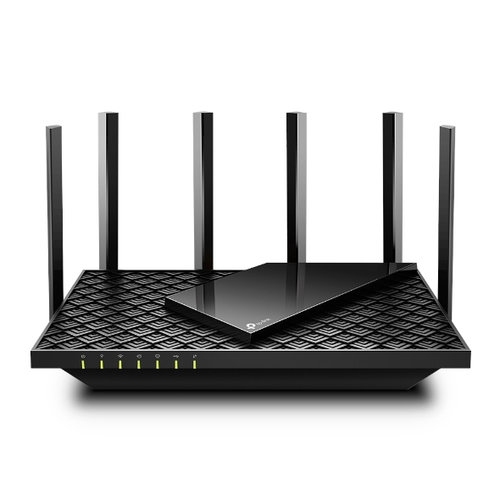

TP-Link AX5400 Dual-Band Gigabit Wi-Fi 6 Router
Product Technical Specification
| WAN connection | |
| Ethernet WAN | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 4804 |
| WLAN data transfer rate (second band) | 574 |
| Modulation | 1024-QAM,OFDM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Support Samba (storage) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Portable router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 6 |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1500 |
| Processor cores | 3 |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 272.5 |
| Depth | 147.2 |
| Height | 49.2 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.
Warp Speed for Smooth 8K Streaming
Drastically improved speeds enable streaming, fast downloading, and gaming, all at the same time. Need to go faster?
Hop on 5 GHz with full speed-boosting features to stream multiple 8K videos without lagging.
Extensive Wi-Fi Coverage with Advanced Technology
Enjoy stable Wi-Fi connections, even in the kitchen and bedroom. High-Power FEM, 6× Antennas, Beamforming, and 4T4R structures combine to adapt Wi-Fi coverage to perfectly fit your home and concentrate signal strength towards your devices.
Connect 200+ Devices
Easily handle dozens of devices streaming and gaming at the same time — OFDMA and MU-MIMO combine to future-proof your home network by providing greater capacity to connect more devices.
OFDMA
Enables different devices to share one transmission stream, increasing efficiency.‡
MU-MIMO
Transmits data to different devices simultaneously using multiple streams.**
Designed to Be Cool
The slant rectangle atop of the scaled armor design provides a contemporary aesthetic. The vent design takes up 167 cm² (25 in²) of its top surface for improved heat dissipation, unleashing the whole machine's full power.
TP-Link HomeShield:
Advanced Security for Unlimited Clients
HomeShield protects all connected clients against DDoS, malicious sites, and port intrusion, delivering a safe network environment for your data and privacy.
Enhanced IoT Security
HomeShield identifies IoT devices, including cameras and voice assistants, to block all potential security holes and secure your privacy.
DDoS Attack Prevention
HomeShield will record abnormal incoming traffic, and the device will automatically block requests from enlisted IPs.
Robust Parental Controls
Manage online time and block inappropriate content to keep your family safe online.
Leading Security by Avira®
Avira, an award-winning tech company, relied on by 500 million users, powers HomeShield and continually updates it, ensuring your network stays care-free.
TP-Link OneMesh™: Flexibly Create Whole Home
WiFi with Archer AX73
Want to build a whole-home Wi-Fi? Archer AX73 supports OneMesh to form seamless whole-home coverage, preventing drops and lag when moving between signals.
Easy Setup and Use
Whether you prefer the intuitive Tether App or the powerful web interface, you can set up your Archer AX73 in minutes. The Tether App allows you to manage network settings from any Android or iOS device.
| WAN connection | |
| Ethernet WAN | Yes |
| WAN connection type | RJ-45 |
| Wireless LAN features | |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 5400 |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 4804 |
| WLAN data transfer rate (second band) | 574 |
| Modulation | 1024-QAM,OFDM |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g |
| Port forwarding | Yes |
| Port triggering | Yes |
| Dynamic DNS (DDNS) | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| Support Samba (storage) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Management features | |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| MU-MIMO technology | Yes |
| Security | |
| Security algorithms | WPA,WPA-Enterprise,WPA2,WPA2-Enterprise,WPA3 |
| Firewall | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| Parental control | Yes |
| Filtering | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Network address translation (NAT) | Yes |
| Protocols | |
| DHCP client | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Design | |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Portable router |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick installation guide | Yes |
| Antenna | |
| Antenna design | External |
| Antennas quantity | 6 |
| Features | |
| Built-in processor | Yes |
| Processor frequency | 1500 |
| Processor cores | 3 |
| Power | |
| Power source type | DC |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 70 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Width | 272.5 |
| Depth | 147.2 |
| Height | 49.2 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
