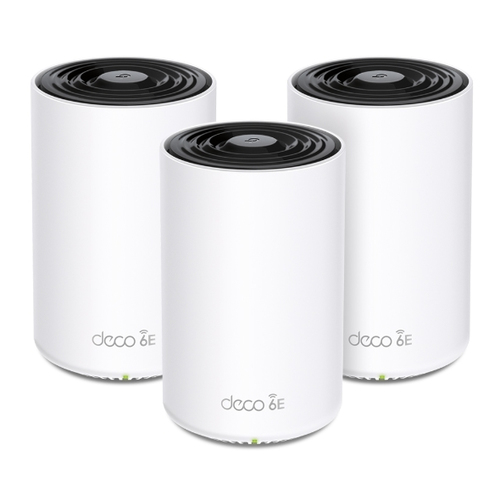

TP-Link AXE5400 Tri-Band Mesh Wi-Fi 6E System
Product Technical Specification
| Design | |
| Product type | Mesh system |
| Product colour | White |
| LED indicators | Yes |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Maximum coverage | 500 |
| Transmit power | FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz), CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) |
| Reset button | Yes |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -40 - 60 |
| Operating relative humidity (H-H) | 10 - 90 |
| Storage relative humidity (H-H) | 5 - 90 |
| Certification | CE, FCC, RoHS |
| Wireless LAN features | |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,Wi-Fi 6 (802.11ax),802.11g,Wi-Fi 4 (802.11n),Wi-Fi 6E (802.11ax) |
| WLAN data transfer rate (first band) | 574 |
| WLAN data transfer rate (second band) | 2402 |
| WLAN data transfer rate (third band) | 2402 |
| Networking standards | IEEE 802.11n,IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g |
| Security algorithms | WPA2-PSK,WPA3,WPA |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Wireless Distribution System (WDS) bridge | Yes |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Tagged VLAN | Yes |
| Dynamic DNS (DDNS) | Yes |
| Guest access | Yes |
| Control apps supported | TP-Link Deco |
| Features | |
| Built-in processor | Yes |
| Processor cores | 4 |
| Processor frequency | 1.7 |
| Quality of Service (QoS) support | Yes |
| Port forwarding | Yes |
| Firewall security | SPI Firewall |
| BeamForming | Yes |
| Number of guest networks (5 GHz) | 1 |
| Number of guest networks (2.4 GHz) | 1 |
| Parental control | Yes |
| Parental control features | Bedtime,Custom profiles,Pause the Internet,Time rewards,Content filter,Family time,Time controls,Weekly/monthly reports |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Protocols | |
| DHCP client | Yes |
| DHCP server | Yes |
| Supported network protocols (IPv6) | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet WAN | Yes |
| DC-in jack | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 |
| AC adapter frequency | 50 - 60 |
| AC adapter output voltage | 12 |
| Weight & dimensions | |
| Width | 105 |
| Depth | 105 |
| Height | 169 |
| Packaging content | |
| Number of products included | 2 |
| AC adapter included | Yes |
| Number of adapters included | 2 |
| Ethernet cable | Yes |
Delivery Options
Economy Delivery (UK)
Business Express

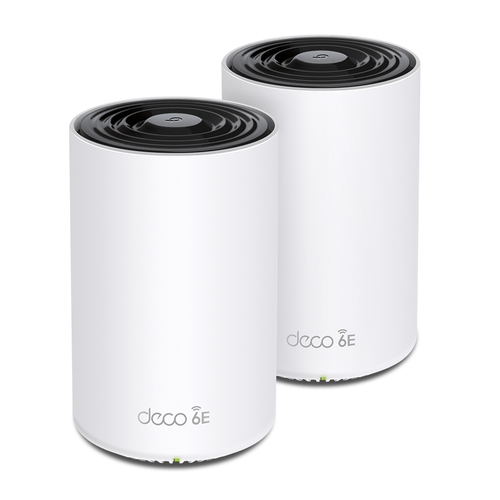

AXE5400 Tri-Band Mesh WiFi 6E System
Deco XE75 Pro
Upgrade Your WiFi to 6E
WiFi 6E utilizes the capabilities of 6 GHz to enable high-bandwidth applications that require faster data throughput such as high-definition video streaming and virtual reality, as well as lower latency connectivity for online gaming applications.
- More spectrum, lower latency
- Wider channels, more throughput
- Congestion-free, less interference
- Supports all WiFi generations and devices
Engineered for Blazing Fast Speed
Experience ultra-fast Wi-Fi with more connected devices thanks to the brand-new 6 GHz band. The added 160 MHz channels prevent competition over bandwidth and drops in speed.
Cover Every Corner of Your Home
Deco XE75 Pro eliminates weak signal areas with clearer, stronger whole-home WiFi generated by BSS (Base Service Station) Coloring and Beamforming technologies as the WiFi dead zone killer. Thus, there will be no more searching around for a stable connection.
Fits Any Type of Your House
Expand Anywhere You Want
Brick and cement. Floors and ceilings. Walls and hallways. All of them make it tough for WiFi to travel across your home. Deco units work together to move WiFi around the obstacles in your home and deliver complete coverage.
Engineered for
More Devices
Deco products are aimed to dramatically improve capacity and efficiency in traffic-dense environments. No matter how many screens or devices are on at once, everyone is able to enjoy a more efficient network that loads faster without dragging down performance.
Lightning-Fast Wired Connections
A 2.5 Gbps port and 2 Gigabit ports allow you to take full advantage of your broadband speed. Plug your PCs, smart TVs, or game consoles into the ports for blazing-fast wired connections.
Intelligent Networking for a Smarter Home
Deco uses its custom algorithms to automate the connections on your network, ensuring the strongest possible signals at all times.
Seamless Roaming with One Wi-Fi Name
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless WiFi experience.
Simple. Easy. Yet Powerful.
Setup and manage your network anytime and anywhere on the friendly TP-Link Deco app. In just three easy steps your entire home can be blanketed in strong and reliable WiFi.
