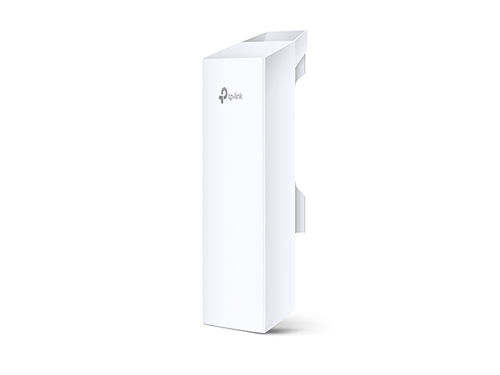

TP-Link CPE510 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
| Features | |
| Maximum data transfer rate | 300 |
| Wi-Fi data rate (max) | 300 |
| Ethernet LAN data rates | 10,100 |
| Frequency band | 5.15 - 5.85 |
| Bandwidth | 5 |
| Networking standards | IEEE 802.11a,IEEE 802.11n |
| Maximum outdoor range | 15000 |
| Receiver sensitivity | 802.11a: 54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm 802.11n: MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm, MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm, MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm, MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm, MCS3: -83dBm, MCS2: -88dBm, MCS1: -90dBm, MCS0: -93dBm |
| Security | |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering | Yes |
| Protocols | |
| Management protocols | TDMA |
| Management features | |
| Web-based management | Yes |
| Management platform | Pharos Control |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power | |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 |
| Input current | 0.8 |
| AC input frequency | 50/60 |
| Power consumption (typical) | 13 |
| Design | |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Certification | FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark RoHS |
| Internal | No |
| Antenna | |
| Antenna features | Integrated antenna |
| Antennas quantity | 1 |
| Antenna gain level (max) | 13 |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 8 |
| Internal memory | 64 |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux. |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | -30 - 70 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 224 |
| Depth | 75 |
| Height | 60 |
| Packaging data | |
| Cables included | AC |
Delivery Options
Economy Delivery (UK)
Business Express
Enterprise Hardware
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
- Built-in High Gain Dual-Polarized Antenna
- Dedicated metal reflector ensures higher gain and lower noise interference
15km+ Wireless Data Transmission
Specially designed for outdoor uses, ideal for long distance wireless data transmission, covering a range of 15km+ , tested in the field.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience. To mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
