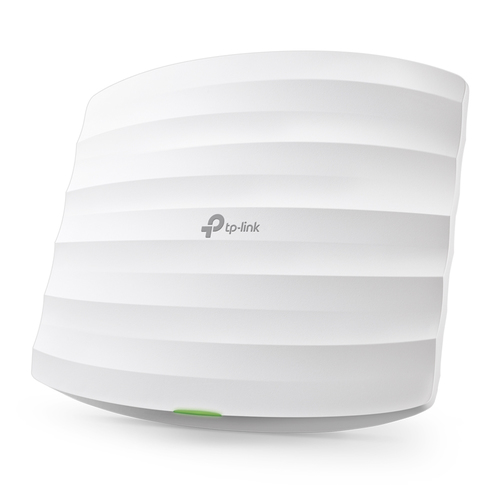

TP-Link EAP110 wireless access point 300 Mbit/s White Power over Ethernet (PoE)
Product Technical Specification
Features | |
2.4 GHz | Yes |
5 GHz | No |
Maximum data transfer rate | 300 |
Maximum data transfer rate (2.4 GHz) | 300 |
Ethernet LAN data rates | 10,100 |
Frequency band | 2.4 - 2.4835 |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x |
Cabling technology | 10/100Base-T(X) |
Automatic channel selection | Yes |
Wi-Fi Multimedia (WMM)/(WME) | Yes |
VLAN support | Yes |
Virtual LAN features | SSID-based VLAN assignment |
Rate limiting | Yes |
Wireless isolation | Yes |
Quality of Service (QoS) support | Yes |
Transmitting power (CE) | 21 |
Receiver sensitivity | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
Security | |
Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,HTTPS,SNMP,SNMPv2,SSH,WPA,WPA-PSK,WPA2-Enterprise,WPA2-PSK |
MAC address filtering | Yes |
Service Set Identifier (SSID) features | Multiple SSIDs |
Number of SSID supported | 8 |
Remote Authentication Dial-In User Service (RADIUS) | Yes |
Access Control List (ACL) | Yes |
Management features | |
Web-based management | Yes |
Syslog | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Power | |
Power over Ethernet (PoE) | Yes |
AC input voltage | 24 |
Power consumption (typical) | 2.8 |
Design | |
Placement | Ceiling,Wall |
Product colour | White |
Reset button | Yes |
LED indicators | Power |
Certification | FCC, RoHS |
Antenna | |
Antenna type | Internal |
Antenna direction type | Omni-directional |
Antennas quantity | 2 |
Antenna gain level (max) | 4 |
Weight & dimensions | |
Width | 189.4 |
Depth | 172.3 |
Height | 29.5 |
Packaging data | |
Package type | Box |
Packaging content | |
Number of products included | 1 |
PoE adapter included | Yes |
Cables included | AC |
Mounting kit | Yes |
Quick start guide | Yes |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90 |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -40 - 70 |
Storage relative humidity (H-H) | 5 - 90 |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Delivery Options

Economy Delivery (UK)

Business Express
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Efficient Guest Authentication with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
